RC-17P2N122K00

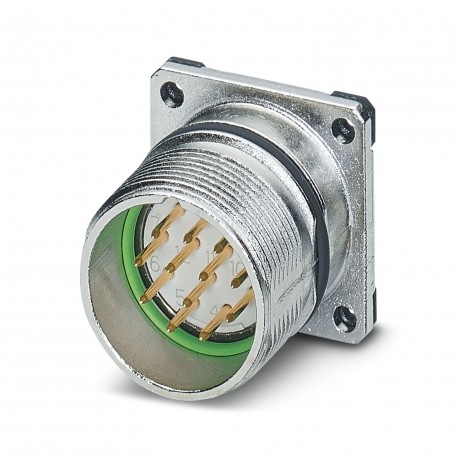

RC-17P2N122K00 1615801 PHOENIX CONTACT Device connector, front mounting
$0.00USD
4065 in stock
Key Specifications
:74 V DC
Coding:N
Application:Signal
Thread type:M23
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 74 V DC | |
| Coding | N |
| Application | Signal |
| Thread type | M23 |
| Product type | Circular connectors (device side) |
| Rated voltage | 48 V AC |
| Type of locking | Screw locking mechanism |
| Housing material | GD-Zn |
| Connection method | Solder cup |
| Flange dimensions | 25 mm x 25 mm |
| Connection profile | 17 |
| Order information: | Order contact inserts separately |
| Degree of pollution | 3 |
| Number of positions | 17 |
| Pg screw connection | none |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Direction of rotation | Counter direction |
| Contact switching type | Pin |
| Insertion/withdrawal cycles | 50 |
| Rated currentPower contacts | 8 A |
| Contact diameterPower contacts | 1 mm |
| Degree of protection (plugged in) | IP67 |
| Litz wire cross-sectionPower contactsmax. | 1 mm² |
| Litz wire cross-sectionPower contactsmin. | 0.08 mm² |
Product Description
M23, Conect. plug. to be apar. front wall, RC, straight, shielded: yes, Screw lock, No. of poles: 17, Direction of rotation: Opposite movement, contact type: Male, Weld connection, Flat joint, 4x Ø2.7
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
