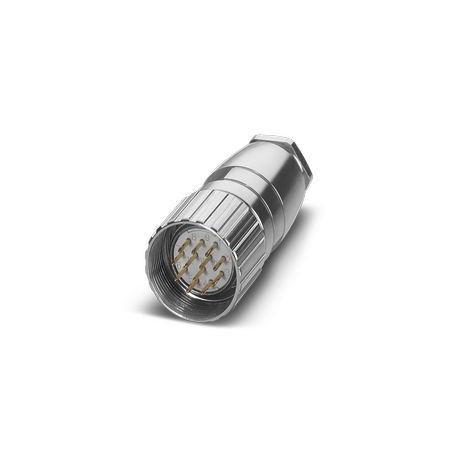

RC-17P1N8A1K00X
RC-17P1N8A1K00X 1241343 PHOENIX CONTACT M23, Cable connector, series: RC, straight, shielded: no, Screw lock..
$24.58USD
452 in stock
Key Specifications
:74 V DC
Note:Order information: Order crimp contacts Ø 1 mm separately
Coding:N
General:Order crimp contacts Ø 1 mm separately
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 74 V DC | |
| Note | Order information: Order crimp contacts Ø 1 mm separately |
| Coding | N |
| General | Order crimp contacts Ø 1 mm separately |
| Application | Signal |
| Thread type | M23 |
| Product type | Circular connector (cable-side) |
| Rated voltage | 48 V AC |
| Type of locking | Screw locking mechanism |
| Housing material | Metal |
| Connection method | Crimp connection |
| Connection profile | 17 |
| Degree of pollution | 3 |
| Number of positions | 17 |
| Pg screw connection | Pg11 |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact switching type | Pin |
| External cable diameter | 7 mm ... 10.5 mm |
| Rated currentPower contacts | 8 A |
| Contact diameterPower contacts | 1 mm |
| Degree of protection (plugged in) | IP65 |
Product Description
M23, Cable connector, RC, straight, shielded: no, Screw locking, No. of poles: 17, Direction of rotation: Standard, contact type: Male, Crimped connection, cable diameter range: 7 mm ... 10.5 mm, codi
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
