RC-16P1N121620

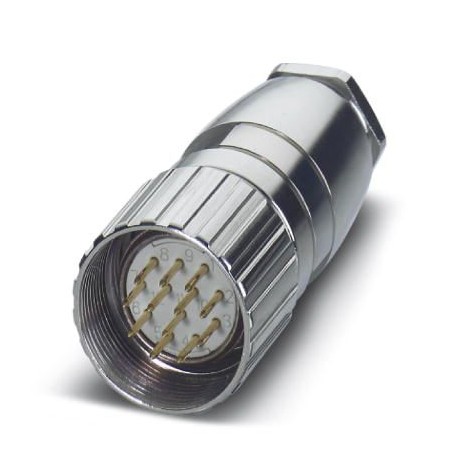

RC-16P1N121620 1621142 PHOENIX CONTACT Cable connector
$0.00USD
4033 in stock
Key Specifications
GTIN:4046356896474
Orderkey:1621142
Packing unit:1
(Cable seal data):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356896474 |
| Orderkey | 1621142 |
| Packing unit | 1 |
| (Cable seal data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Custom tariff number | 85366990 |
| China RoHS (Cable seal data) | Environmentally Friendly Use Period = 50 |
| Coding (Key Commercial Data) | N |
| REACh SVHC (Cable seal data) | Lead 7439-92-1 |
| Cable diameter (Housing data) | 8 mm ... 12 mm |
| (Data of the insulating body) | IP67 |
| Application (Key Commercial Data) | Signal |
| Type of contacts (Key Commercial Data) | Pin |
| Degree of pollution (Key Commercial Data) | 3 |
| Number of positions (Key Commercial Data) | 16 |
| Rated surge voltage (Key Commercial Data) | 1.5 kV |
| Thread type (Data of the insulating body) | M23 |
| Overvoltage category (Key Commercial Data) | II |
| Type of locking (Data of the insulating body) | Screw locking |
| Housing material (Data of the insulating body) | Metal |
| Contact connection method (Key Commercial Data) | Solder connection |
| Nominal voltage, power contact (Key Commercial Data) | 150 V |
| Contact diameter of power contacts (Key Commercial Data) | 1 mm |
| Insertion/withdrawal cycles mechanical (Key Commercial Data) | 50 |
| Nominal current per power contact at 25°C (Key Commercial Data) | 8 A |
| Degree of protection (when plugged in) (Data of the insulating body) | IP65 |
| Litz wire cross section of power contacts max. (Key Commercial Data) | 1 mm² |
| Litz wire cross section of power contacts min. (Key Commercial Data) | 0.08 mm² |
