RC-12SDN8A80A5

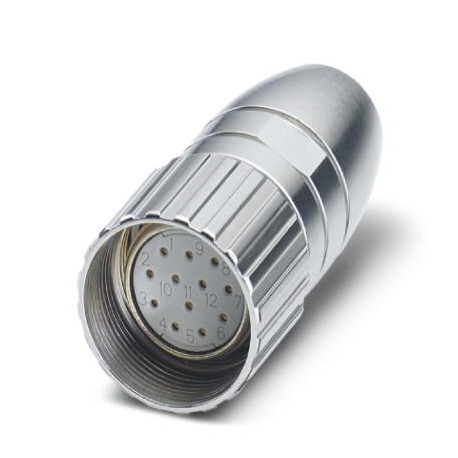

RC-12SDN8A80A5 1614588 PHOENIX CONTACT Cable connector RC-12SDN8A80A5 1614588
$0.00USD
3639 in stock
Key Specifications
GTIN:4055626053486
Orderkey:1614588
Packing unit:1
ETIM 5.0 (eCl@ss):EC002635
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626053486 |
| Orderkey | 1614588 |
| Packing unit | 1 |
| ETIM 5.0 (eCl@ss) | EC002635 |
| ETIM 6.0 (eCl@ss) | EC002061 |
| (Cable seal data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| UNSPSC 13.2 (ETIM) | 39121413 |
| Custom tariff number | 85366990 |
| Note (Key Commercial Data) | Order information: Order crimp contacts Ø 1 mm separately |
| China RoHS (Cable seal data) | Environmentally Friendly Use Period = 50 |
| Coding (Key Commercial Data) | N |
| REACh SVHC (Cable seal data) | |
| eCl@ss 5.1 (Classifications) | 27260701 |
| eCl@ss 6.0 (Classifications) | 27260708 |
| eCl@ss 8.0 (Classifications) | 27440102 |
| eCl@ss 9.0 (Classifications) | 27440103 |
| Cable diameter (Housing data) | 6.5 mm ... 7.5 mm |
| Sealing material (Housing data) | NBR |
| Application (Key Commercial Data) | Signal |
| Type of contacts (Key Commercial Data) | Socket |
| Thread type (Data of the insulating body) | M23 |
| Type of locking (Data of the insulating body) | Screw locking |
| Housing material (Data of the insulating body) | Metal |
| Contact connection method (Key Commercial Data) | Crimp connection |
| Contact diameter of power contacts (Key Commercial Data) | 1 mm |
| Nominal current per power contact at 25°C (Key Commercial Data) | 8 A |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
Product Description
M23, Plug connector. for cables, straight, shielded: no, Screw lock, No. of poles: 12, Direction of rotation: Opposite movement, type of contact: Female, Crimped connection, Cable diameter range: 6.5
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Cable connector, straight, shielded: yes, Screw locking, M23, No. of pos.: 12, type of contact: Socket, Crimp connection, cable diameter range: 6.5 mm ... 7.5 mm
