In Stock Hot Product
RC-12P1N8A7500

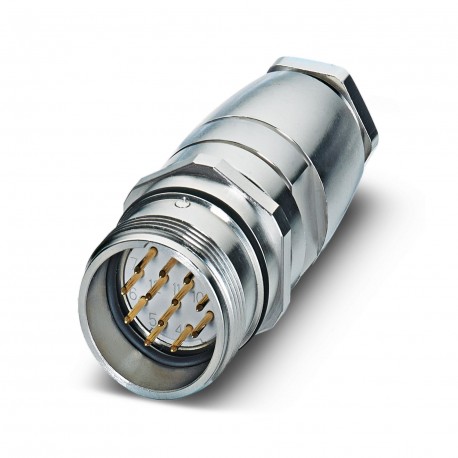

RC-12P1N8A7500 1597503 PHOENIX CONTACT Coupler connector, with Pg9 connection thread, straight, shielded: no..
$0.00USD
4210 in stock
Key Specifications
:74 V DC
Note:Order information: Order crimp contacts Ø 1 mm separately
Coding:N
Application:Signal
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 74 V DC | |
| Note | Order information: Order crimp contacts Ø 1 mm separately |
| Coding | N |
| Application | Signal |
| Thread type | M23 |
| Product type | Circular connector (cable-side) |
| Rated voltage | 48 V AC |
| Type of locking | Screw locking mechanism |
| Housing material | Metal |
| Connection method | Solder connection |
| Connection profile | 12 |
| Order information: | Order crimp contacts Ø 1 mm separately |
| Degree of pollution | 3 |
| Number of positions | 12 |
| Pg screw connection | Pg9 |
| Rated surge voltage | 1.5 kV |
| Degree of protection | IP67 |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact switching type | Pin |
| Rated currentPower contacts | 8 A |
| Contact diameterPower contacts | 1 mm |
| Degree of protection (plugged in) | IP65 |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | 15 °C ... 25 °C |
| Permissible humidity (storage/transport) | 50 % ... 65 % |
Product Description
M23, Plug-in coupling connector, RC, straight, shielded: no, Screw lock, No. of poles: 12, Direction of rotation: Standard, contact type: Male, Crimped connection, cable diameter range: 6 mm ... 10mm,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
