RC-12P1N224ZDL

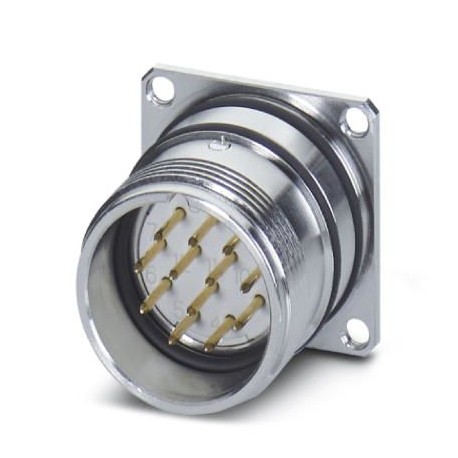

RC-12P1N224ZDL 1597418 PHOENIX CONTACT Device connector, rear mounting
$0.00USD
3829 in stock
Key Specifications
GTIN:4046356216012
Orderkey:1597418
Packing unit:1
(Housing data):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356216012 |
| Orderkey | 1597418 |
| Packing unit | 1 |
| (Housing data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Custom tariff number | 85366990 |
| China RoHS (Housing data) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Housing data) | Lead 7439-92-1 |
| Coding (Key Commercial Data) | N |
| Application (Key Commercial Data) | Signal |
| Note (Data of the insulating body) | Order information: Order contact inserts separately |
| Type of contacts (Key Commercial Data) | Pin |
| Degree of pollution (Key Commercial Data) | 3 |
| Number of positions (Key Commercial Data) | 12 |
| Rated surge voltage (Key Commercial Data) | 1.5 kV |
| Thread type (Data of the insulating body) | M23 |
| Overvoltage category (Key Commercial Data) | II |
| Type of locking (Data of the insulating body) | Screw locking |
| Housing material (Data of the insulating body) | GD-Zn |
| Contact connection method (Key Commercial Data) | Solder-in connection |
| Nominal voltage, power contact (Key Commercial Data) | 150 V |
| Contact diameter of power contacts (Key Commercial Data) | 1 mm |
| Insertion/withdrawal cycles mechanical (Key Commercial Data) | 50 |
| Nominal current per power contact at 25°C (Key Commercial Data) | 8 A |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
Product Description
M23, Conect. plug. to be apar. poster wall, RC, straight, shielded: yes, Screw lock, No. of poles: 12, Direction of rotation: Standard, contact type: Male, Solder connection, Radial O-ring, 4xM2.5, Mi
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
