RC-07P1NC24100

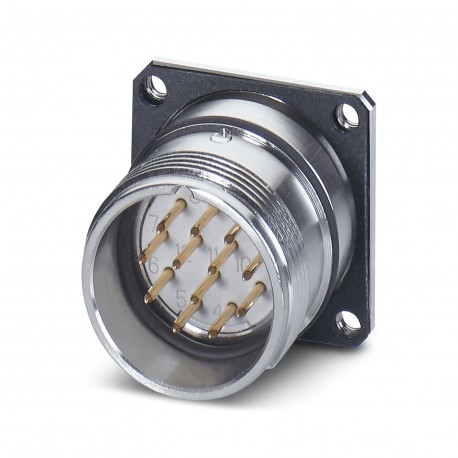

RC-07P1NC24100 1594508 PHOENIX CONTACT Device connector, rear mounting
$0.00USD
3823 in stock
Key Specifications
GTIN:4046356879330
Note:Made to Order (non-returnable)
Orderkey:1594508
Packing unit:20 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356879330 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1594508 |
| Packing unit | 20 pc |
| (Housing data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| China RoHS (Housing data) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Housing data) | Lead 7439-92-1 |
| Coding (Key Commercial Data) | N |
| Application (Key Commercial Data) | Signal |
| Weight per Piece (excluding packing) | 35.220 g |
| Type of contacts (Key Commercial Data) | Pin |
| Degree of pollution (Key Commercial Data) | 3 |
| Number of positions (Key Commercial Data) | 7 |
| Rated surge voltage (Key Commercial Data) | 2.5 kV |
| Thread type (Data of the insulating body) | M23 |
| Overvoltage category (Key Commercial Data) | II |
| Type of locking (Data of the insulating body) | Screw locking |
| Housing material (Data of the insulating body) | Metal |
| Contact connection method (Key Commercial Data) | Solder-in connection |
| Nominal voltage, power contact (Key Commercial Data) | 300 V |
| Contact diameter of power contacts (Key Commercial Data) | 2 mm |
| Insertion/withdrawal cycles mechanical (Key Commercial Data) | 100 |
| Nominal current per power contact at 25°C (Key Commercial Data) | 20 A |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
Product Description
M23, Conect. plug. to be apar. poster wall, RC, straight, Screw lock, No. of poles: 7, Direction of rotation: Standard, contact type: Male, Weld connection, Flat joint, 4xM3, Min. wall thickness: 2.7
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
