RC-07P1N8A6500

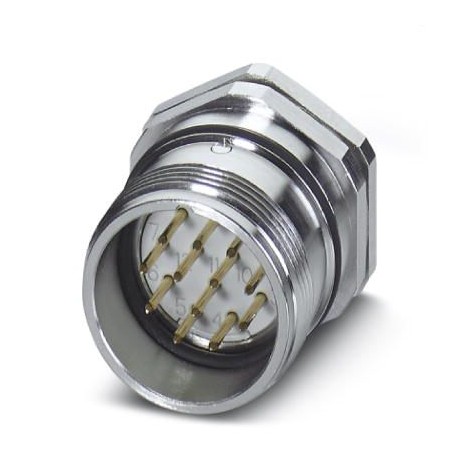

RC-07P1N8A6500 1594450 PHOENIX CONTACT Device connector with Pg13.5 screw-in thread, straight, shielded: yes..
$0.00USD
4871 in stock
Key Specifications
GTIN:4046356201445
Orderkey:1594450
Packing unit:1
(Housing data):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356201445 |
| Orderkey | 1594450 |
| Packing unit | 1 |
| (Housing data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Custom tariff number | 85366990 |
| China RoHS (Housing data) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Housing data) | Lead 7439-92-1 |
| Note (Key Commercial Data) | Order information: Order crimp contacts Ø 2 mm separately |
| Coding (Key Commercial Data) | N |
| Application (Key Commercial Data) | Signal |
| Type of contacts (Key Commercial Data) | Pin |
| Degree of pollution (Key Commercial Data) | 3 |
| Number of positions (Key Commercial Data) | 7 |
| Rated surge voltage (Key Commercial Data) | 2.5 kV |
| Thread type (Data of the insulating body) | M23 |
| Overvoltage category (Key Commercial Data) | II |
| Type of locking (Data of the insulating body) | Screw locking |
| Housing material (Data of the insulating body) | Metal |
| Contact connection method (Key Commercial Data) | Crimp connection |
| Nominal voltage, power contact (Key Commercial Data) | 300 V |
| Contact diameter of power contacts (Key Commercial Data) | 2 mm |
| Nominal current per power contact at 25°C (Key Commercial Data) | 20 A |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
Product Description
M23, Conect. plug. to be apar. front wall, RC, straight, shielded: yes, Screw lock, No. of poles: 7, Direction of rotation: Standard, contact type: Male, Crimped connection, Axial O-ring, Central fixi
