RC-07P1N129006

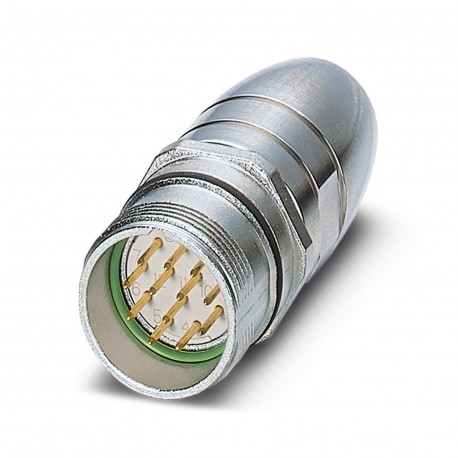

RC-07P1N129006 1594339 PHOENIX CONTACT Coupler connector
$0.00USD
4183 in stock
Key Specifications
:74 V DC
Coding:N
Application:Signal
Thread type:M23
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 74 V DC | |
| Coding | N |
| Application | Signal |
| Thread type | M23 |
| Product type | Circular connector (cable-side) |
| Rated voltage | 48 V AC |
| Type of locking | Screw locking mechanism |
| Housing material | Metal |
| Connection method | Solder cup |
| Connection profile | 7 |
| Degree of pollution | 3 |
| Number of positions | 7 |
| Pg screw connection | none |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact switching type | Pin |
| External cable diameter | 7.5 mm ... 9.5 mm |
| Insertion/withdrawal cycles | 50 |
| Rated currentPower contacts | 20 A |
| Contact diameterPower contacts | 2 mm |
| Degree of protection (plugged in) | IP67 |
| Litz wire cross-sectionPower contactsmax. | 2.5 mm² |
| Litz wire cross-sectionPower contactsmin. | 0.08 mm² |
Product Description
M23, Plug-in coupling connector, RC, straight, shielded: yes, Screw lock, No. of poles: 7, Direction of rotation: Standard, contact type: Male, Solder connection, cable diameter range: 7.5 mm ... 9.5
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
