RC-06S1N1280G0

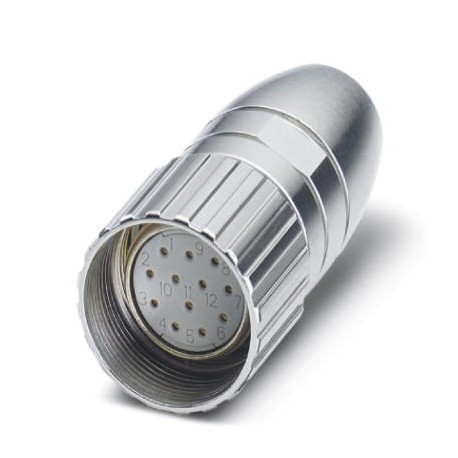

RC-06S1N1280G0 1593761 PHOENIX CONTACT Cable connector
$0.00USD
3034 in stock
Key Specifications
GTIN:4046356197939
Orderkey:1593761
Packing unit:1
(Housing data):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356197939 |
| Orderkey | 1593761 |
| Packing unit | 1 |
| (Housing data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Custom tariff number | 85366990 |
| China RoHS (Housing data) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Housing data) | Lead 7439-92-1 |
| Coding (Key Commercial Data) | N |
| Application (Key Commercial Data) | Signal |
| Type of contacts (Key Commercial Data) | Socket |
| Degree of pollution (Key Commercial Data) | 3 |
| Number of positions (Key Commercial Data) | 6 |
| Rated surge voltage (Key Commercial Data) | 2.5 kV |
| Thread type (Data of the insulating body) | M23 |
| Overvoltage category (Key Commercial Data) | II |
| Type of locking (Data of the insulating body) | Screw locking |
| Housing material (Data of the insulating body) | Metal |
| Contact connection method (Key Commercial Data) | Solder connection |
| Nominal voltage, power contact (Key Commercial Data) | 300 V |
| Contact diameter of power contacts (Key Commercial Data) | 2 mm |
| Insertion/withdrawal cycles mechanical (Key Commercial Data) | 50 |
| Nominal current per power contact at 25°C (Key Commercial Data) | 20 A |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
| Litz wire cross section of power contacts max. (Key Commercial Data) | 2.5 mm² |
| Litz wire cross section of power contacts min. (Key Commercial Data) | 0.08 mm² |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
