RC-06S1N1280EN

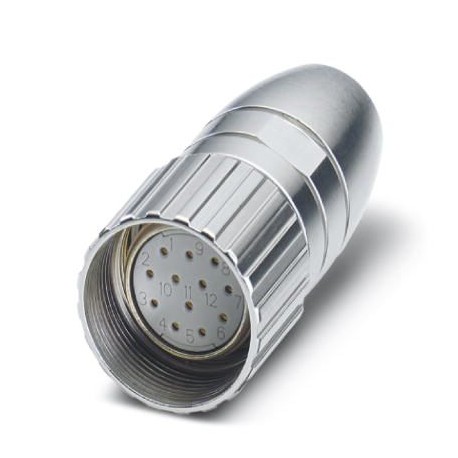

RC-06S1N1280EN 1593755 PHOENIX CONTACT Cable connector
$0.00USD
4693 in stock
Key Specifications
GTIN:4046356197908
Note:Made to Order (non-returnable)
Orderkey:1593755
Packing unit:20 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356197908 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1593755 |
| Packing unit | 20 pc |
| Country of origin | DE (Germany) |
| (Cable seal data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Custom tariff number | 85366990 |
| China RoHS (Cable seal data) | Environmentally Friendly Use Period = 50 |
| Coding (Key Commercial Data) | N |
| REACh SVHC (Cable seal data) | Lead 7439-92-1 |
| Cable diameter (Housing data) | 3 mm ... 10.5 mm |
| Sealing material (Housing data) | NBR |
| Application (Key Commercial Data) | Signal |
| Weight per Piece (excluding packing) | 71.990 g |
| Type of contacts (Key Commercial Data) | Socket |
| Degree of pollution (Key Commercial Data) | 3 |
| Number of positions (Key Commercial Data) | 6 |
| Rated surge voltage (Key Commercial Data) | 2.5 kV |
| Thread type (Data of the insulating body) | M23 |
| Overvoltage category (Key Commercial Data) | II |
| Type of locking (Data of the insulating body) | Screw locking |
| Housing material (Data of the insulating body) | Metal |
| Contact connection method (Key Commercial Data) | Solder connection |
| Nominal voltage, power contact (Key Commercial Data) | 300 V |
| Contact diameter of power contacts (Key Commercial Data) | 2 mm |
| Insertion/withdrawal cycles mechanical (Key Commercial Data) | 50 |
| Nominal current per power contact at 25°C (Key Commercial Data) | 20 A |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
| Litz wire cross section of power contacts max. (Key Commercial Data) | 2.5 mm² |
| Litz wire cross section of power contacts min. (Key Commercial Data) | 0.08 mm² |
Product Description
M23, Plug connector. for cables, straight, shielded: no, Screw lock, No. of poles: 6, Direction of rotation: Standard, contact type: Female, Solder connection, cable diameter range: 3 mm ... 10.5 mm,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
