In Stock Hot Product
RC-06P1N8A80EP

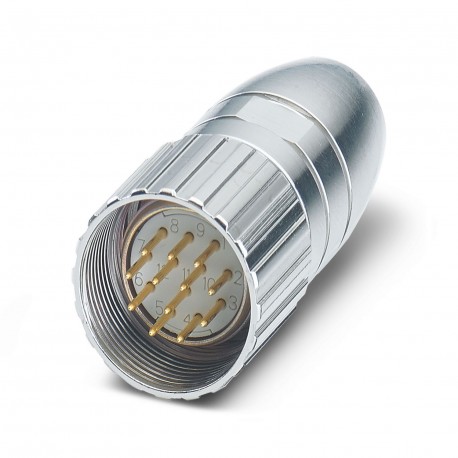

RC-06P1N8A80EP 1610141 PHOENIX CONTACT Cable connector
$0.00USD
4651 in stock
Key Specifications
:74 V DC
Note:Order information: Order crimp contacts Ø 2 mm separately
Coding:N
Application:Signal
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 74 V DC | |
| Note | Order information: Order crimp contacts Ø 2 mm separately |
| Coding | N |
| Application | Signal |
| Thread type | M23 |
| Product type | Circular connector (cable-side) |
| Rated voltage | 48 V AC |
| Seal material | NBR |
| Type of locking | Screw locking mechanism |
| Housing material | Metal |
| Connection method | Crimp connection |
| Connection profile | 6 |
| Order information: | Order crimp contacts Ø 2 mm separately |
| Degree of pollution | 3 |
| Number of positions | 6 |
| Pg screw connection | none |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact switching type | Pin |
| External cable diameter | 3 mm ... 10.5 mm |
| Rated currentPower contacts | 20 A |
| Contact diameterPower contacts | 2 mm |
| Degree of protection (plugged in) | IP65 |
Product Description
Plug-in connector for cables, RC, straight, shielded: yes, Screw lock, M23, No. of poles: 6, contact type: Pin, Crimped connection, cable diameter range: 3 mm ... 10.5 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
