RC-06P1N324100

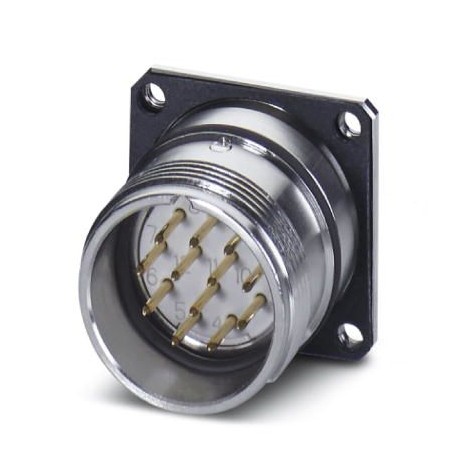

RC-06P1N324100 1625744 PHOENIX CONTACT Device connector, rear mounting
$0.00USD
3849 in stock
Key Specifications
GTIN:4046356748629
Orderkey:1625744
Packing unit:1
(Housing data):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356748629 |
| Orderkey | 1625744 |
| Packing unit | 1 |
| (Housing data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Coding (Dimensions) | N |
| Custom tariff number | 85366990 |
| Application (Dimensions) | Signal |
| China RoHS (Housing data) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Housing data) | Lead 7439-92-1 |
| Type of contacts (Dimensions) | Pin |
| Degree of pollution (Dimensions) | 3 |
| Number of positions (Dimensions) | 6 |
| Rated surge voltage (Dimensions) | 2.5 kV |
| Overvoltage category (Dimensions) | II |
| Contact connection method (Dimensions) | Solder-in connection |
| Thread type (Data of the insulating body) | M23 |
| Nominal voltage, power contact (Dimensions) | 300 V |
| free solder pin length (Key Commercial Data) | 4.5 mm |
| Type of locking (Data of the insulating body) | Screw locking |
| Housing material (Data of the insulating body) | Metal |
| Contact diameter of power contacts (Dimensions) | 2 mm |
| Insertion/withdrawal cycles mechanical (Dimensions) | 50 |
| Nominal current per power contact at 25°C (Dimensions) | 20 A |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
Product Description
Plug-in connector for rear wall devices, RC, straight, Screw lock, M23, No. of poles: 6, contact type: Pin, Solder connection, Flat joint, 4xM3, Min. wall thickness: 2.7 mm, Max. wall thickness: 3.5 m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
