In Stock Hot Product
RC-0000000B2FZ

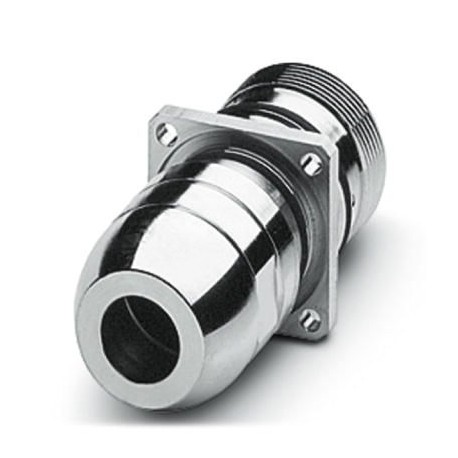

RC-0000000B2FZ 1592781 PHOENIX CONTACT Front panel feed-through
$0.00USD
4438 in stock
Key Specifications
GTIN:4046356192743
Note:Made to Order (non-returnable)
Orderkey:1592781
Packing unit:20 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356192743 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1592781 |
| Packing unit | 20 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Ambient temperature (General) | -20 °C ... 125 °C |
| Degree of protection (General) | IP67 |
| Installation height max. (Material) | 2000 m |
| Mounting type (Key Commercial Data) | 4x Ø2,7 |
| Weight per Piece (excluding packing) | 66.870 g |
| Conductor entry (Key Commercial Data) | 2 mm ... 10.5 mm |
| Housing material (Ambient conditions) | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Type of locking (Key Commercial Data) | Screw locking |
| Type of contacts (Key Commercial Data) | Socket |
| Contact connection method (Key Commercial Data) | Crimp connection |
| Gasket and O-ring material (Ambient conditions) | FPM |
| (Specifications according to DIN EN 61984:2001) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Pg housing screw connection (Key Commercial Data) | none |
| China RoHS (Specifications according to DIN EN 61984:2001) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Specifications according to DIN EN 61984:2001) | Lead 7439-92-1 |
Product Description
Front wall grommet, straight, Screw lock, M23, Radial O-ring, 4x Ø2.7, shielded: yes, min. wall thickness: 3 mm, max. wall thickness: 7 mm, cable diameter range: 2 mm ... 10.5 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
