RBO 10-WD

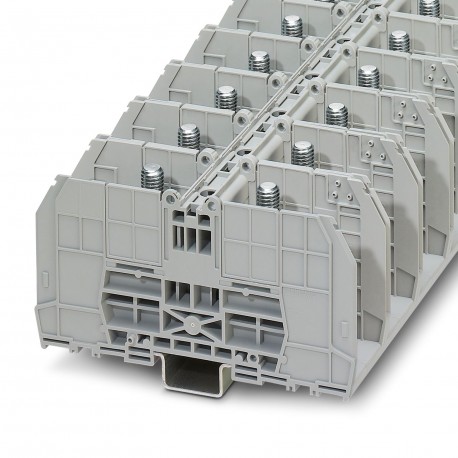

RBO 10-WD 1030161 PHOENIX CONTACT Bolt connection terminal block
$0.00USD
3608 in stock
Key Specifications
:NS 35/15
Color:gray (RAL 7042)
Pitch:41 mm
Width:30 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| NS 35/15 | |
| Color | gray (RAL 7042) |
| Pitch | 41 mm |
| Width | 30 mm |
| Height | 144 mm |
| Potentials | 1 |
| Bolt length | 26.5 mm |
| Product type | Bolt connection terminal block |
| Screw thread | M10 |
| Bolt diameter | 10 mm |
| Cross section | 6 mm² ... 150 mm² |
| Hole diameter | 10.5 mm |
| Mounting type | NS 35/7,5 |
| Number of rows | 1 |
| Nominal current | 309 A |
| Nominal voltage | 1000 V |
| Open side panel | No |
| Article revision | 01 |
| Stripping length | The stripping length depends on the specification provided by the cable lug manufacturer. |
| Tightening torque | 10 ... 20 Nm |
| Depth on NS 35/15 | 84.5 mm |
| Degree of pollution | 3 |
| Depth on NS 35/7,5 | 77 mm |
| Insulating material | PA |
| Number of positions | 1 |
| Rated surge voltage | 8 kV |
| Maximum load current | 309 A (with 150 mm² conductor cross section) |
| Overvoltage category | III |
| Nominal cross section | 150 mm² |
| Number of connections | 2 |
| Cross section range AWG | (converted acc. to IEC) |
| Insulating material group | I |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Number of connections per level | 2 |
| Connection in acc. with standard | IEC 60947-7-1 |
| Permissible humidity (operation) | 20 % ... 90 % |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Maximum power dissipation for nominal condition | 9.55 W |
| Identification color of ring cable lugs : yellow | 6 mm² |
Product Description
Stud connection terminal, nominal voltage: 1000 V, nominal current: 309 A, number of connections: 2, number of poles: 1, connection type: Stud connection, Dimensioning cross-section: 150 mm², mounting
