RB 16-6

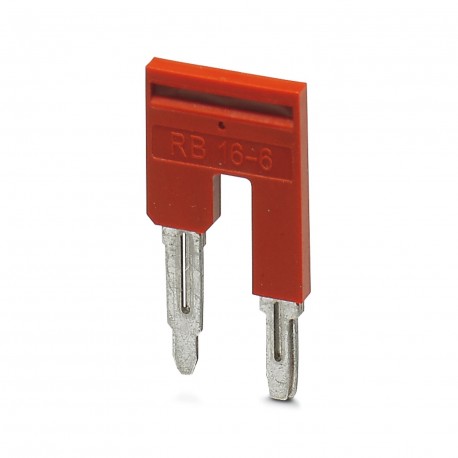

RB 16-6 3047072 PHOENIX CONTACT Reducing bridge
$0.00USD
3643 in stock
Key Specifications
Color:red (RAL 3001)
Pitch:12.2 mm
Material:Copper
Product type:Reducing bridge
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | red (RAL 3001) |
| Pitch | 12.2 mm |
| Material | Copper |
| Product type | Reducing bridge |
| Mounting type | Plug-in mounting |
| Article revision | 02 |
| Insulating material | PA |
| Number of positions | 2 |
| Maximum load current | 37 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C () |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Product Description
Reduction bridge, pitch: 12.2 mm, colour: red
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
