RAMO5-D420EIP-412RS1
RAMO5-D420EIP-412RS1 199117 Y7-199117 EATON ELECTRIC RAMO5-D420EIP-412RS1
$0.00USD
3546 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):120 mm
Width (EF000008):220 mm
Height (EF000040):270 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 120 mm |
| Width (EF000008) | 220 mm |
| Height (EF000040) | 270 mm |
| With fuse (EF006693) | No |
| Release class (EF006668) | CLASS 10 A |
| With transformer (EF000278) | No |
| Power consumption (EF000346) | 8 W |
| Type of motor starter (EF009598) | Direct starter |
| External reset possible (EF003426) | Yes |
| Degree of protection (IP) (EF005474) | IP65 |
| Number of indicator lights (EF001965) | 0 |
| Rated operation current Ie (EF001443) | 6.6 A |
| Suitable for rail mounting (EF003972) | No |
| Voltage type for actuating (EF008242) | DC |
| With short-circuit release (EF006691) | Yes |
| Degree of protection (NEMA) (EF011959) | 12 |
| Number of command positions (EF001372) | 1 |
| Suitable for emergency stop (EF001433) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Rated control supply voltage DC (EF003980) | 0 V |
| Supporting protocol for SUCONET (EF003060) | No |
| Overload release current setting (EF002336) | 0.3 A |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Rated power, 460 V, 60 Hz, 3-phase (EF009600) | 2.238 kW |
| Rated power, 575 V, 60 Hz, 3-phase (EF009601) | 0 kW |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Rated operation power at AC-3, 400 V (EF001364) | 3 kW |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated operation current at AC-3, 400 V (EF009602) | 6.6 A |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Ambient temperature, upper operating limit (EF009603) | 55 °C |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Temperature compensated overload protection (EF009604) | Yes |
| Coordination class according to IEC 60947-4-3 (EF012390) | Class 1 |
| Rated operation power at AC-3, 230 V, 3-phase (EF009599) | 0 kW |
| Type of electrical connection of main circuit (EF006819) | Plug-in connection |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Rated conditional short-circuit current, type 2, 230 V (EF009606) | 0 A |
| Rated conditional short-circuit current, type 2, 400 V (EF009605) | 0 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Rated conditional short-circuit current, type 1, 480 Y/277 V (EF009607) | 10000 A |
| Rated conditional short-circuit current, type 1, 600 Y/347 V (EF009608) | 0 A |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Plug-in connection |
Product Description

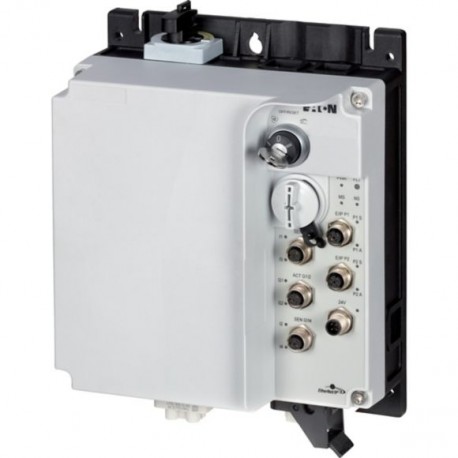

Eaton Moeller® series Rapid Link - DOL starter, 6.6 A, Sensor input 4, Actuator output 2, Ethernet IP, HAN Q4/2, with manual override switch
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
