RAD-ISM-900-SET-DC-UD
RAD-ISM-900-SET-DC-UD 2867034 PHOENIX CONTACT Wireless module
$0.00USD
4046 in stock
Key Specifications
GTIN:4017918929572
Note:Made to Order (non-returnable)
Orderkey:2867034
(General):ISC Directive RSS 210
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918929572 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2867034 |
| (General) | ISC Directive RSS 210 |
| Catalog page | Page 467 (C-8-2013) |
| Packing unit | 1 pc |
| UNSPSC 11 (ETIM) | 39121008 |
| Country of origin | CA (Canada) |
| ETIM 2.0 (eCl@ss) | EC000310 |
| ETIM 3.0 (eCl@ss) | EC000310 |
| ETIM 4.0 (eCl@ss) | EC000310 |
| ETIM 5.0 (eCl@ss) | EC000310 |
| ETIM 6.0 (eCl@ss) | EC000310 |
| (Supply (sender)) | ISC Directive RSS 210 |
| UNSPSC 13.2 (ETIM) | 43222604 |
| UNSPSC 6.01 (ETIM) | 30211506 |
| UNSPSC 12.01 (ETIM) | 43223108 |
| Custom tariff number | 85176990 |
| UNSPSC 7.0901 (ETIM) | 43223108 |
| Conformance (General) | FCC Directive, Part 15.247 |
| Direction (Wireless set) | Uni-directional |
| UL, USA/Canada (General) | Class I, Div. 2, Groups A, B, C, D |
| (Analog output (receiver)) | 120 V AC |
| Depth (Key Commercial Data) | 114.5 mm |
| Width (Key Commercial Data) | 17.5 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 99 mm |
| Conformance (Supply (sender)) | FCC Directive, Part 15.247 |
| Frequency range (Wireless set) | 902 MHz ... 928 MHz |
| UL, USA/Canada (Supply (sender)) | Class I, Div. 2, Groups A, B, C, D |
| Degree of protection (Dimensions) | IP20 |
| Set contents (Ambient conditions) | Transmitter, receiver |
| Transmission power (Wireless set) | 1 W |
| Supply voltage (Supply (receiver)) | 24 V DC |
| Current input signal (Wireless path) | 4 mA ... 20 mA |
| Output name (Digital input (sender)) | Current output |
| Weight per Piece (excluding packing) | 891.000 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Output name (Analog output (receiver)) | 2 x relay output + 1 x RF link |
| Contact type (Analog output (receiver)) | 3 floating PDT contacts |
| Electromagnetic compatibility (General) | FCC Part 15.247 / ISC RSS 210 |
| Number of channel groups (Wireless set) | 4 |
| Description of the input (Wireless path) | Current input (analog input) |
| Supply voltage range (Supply (receiver)) | 9 V DC ... 30 V DC |
| Supply voltage (Digital output (receiver)) | 24 V DC (at UB) |
| Contact material (Analog output (receiver)) | Ag, gold-plated |
| Input voltage range (Analog input (sender)) | 5 V AC/DC ... 30 V AC/DC |
| Number of channels per group (Wireless set) | 63 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 70 °C |
| Max. current consumption (Supply (receiver)) | 350 mA |
| eCl@ss 4.0 (Environmental Product Compliance) | 27250312 |
| eCl@ss 4.1 (Environmental Product Compliance) | 27250312 |
| eCl@ss 5.0 (Environmental Product Compliance) | 27242208 |
| eCl@ss 5.1 (Environmental Product Compliance) | 27242208 |
| eCl@ss 6.0 (Environmental Product Compliance) | 27242208 |
| eCl@ss 7.0 (Environmental Product Compliance) | 27242208 |
| eCl@ss 8.0 (Environmental Product Compliance) | 19179290 |
| eCl@ss 9.0 (Environmental Product Compliance) | 19179290 |
| Current output signal (Digital input (sender)) | 4 mA ... 20 mA |
| Input resistance current input (Wireless path) | < 170 Ω |
| Typical current consumption (Supply (receiver)) | 75 mA |
| Supply voltage range (Digital output (receiver)) | 12 V DC ... 30 V DC |
| Mechanical service life (Analog output (receiver)) | 1x 107 |
| Service life, electrical (Analog output (receiver)) | 8 x 105cycles at a switching current of 0.5 A |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Max. current consumption (Digital output (receiver)) | 125 mA |
| Maximum switching voltage (Analog output (receiver)) | 30 V DC |
| Limiting continuous current (Analog output (receiver)) | 0.5 A |
| Typical current consumption (Digital output (receiver)) | 85 mA |
| Load/output load current output (Digital input (sender)) | 700 Ω (at UB= 24 V, RB= [UB-10 V] / 20 mA) |
| Switching threshold "1" signal voltage (Analog input (sender)) | min. 5 V DC |
| Switching threshold "0" signal, voltage (Analog input (sender)) | max. 1.5 V DC |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details

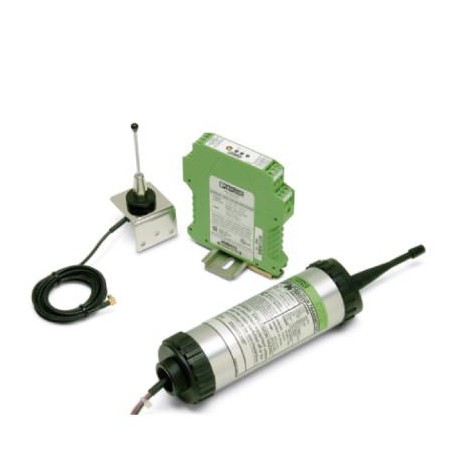

Unidirectional, wireless, 900 MHz transmission system (America), consists of an outdoor transmitter (transmitter, Tx) with 9...30 V DC supply, a DIN-mountable receiver (receiver, Rx) with 12...30 V DC supply, and antennas
