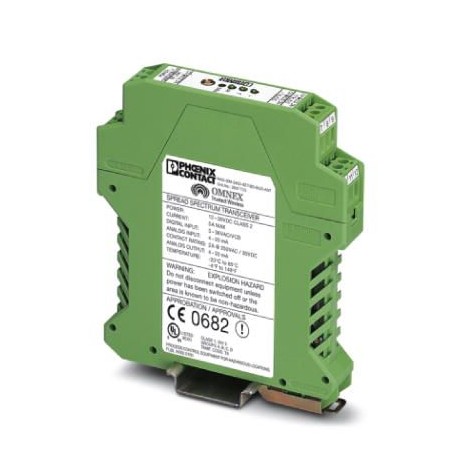

RAD-ISM-900-RX
PTSA 1,5/ 5-3,5-F WH-BK 2867047 - PHOENIX_CONTACT - Wireless module - RAD-ISM-900-RX - 2867047
$0.00USD
3114 in stock
Key Specifications
:120 V AC
GTIN:4017918929589
Note:Made to Order (non-returnable)
Depth:114.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 120 V AC | |
| GTIN | 4017918929589 |
| Note | Made to Order (non-returnable) |
| Depth | 114.5 mm |
| Width | 17.5 mm |
| Height | 99 mm |
| ETIM 2.0 | EC000310 |
| ETIM 3.0 | EC000310 |
| ETIM 4.0 | EC000310 |
| ETIM 5.0 | EC000310 |
| ETIM 6.0 | EC000310 |
| Orderkey | 2867047 |
| UNSPSC 11 | 39121008 |
| China RoHS | Environmentally Friendly Use Period = 50 |
| eCl@ss 4.0 | 27250312 |
| eCl@ss 4.1 | 27250312 |
| eCl@ss 5.0 | 27242208 |
| eCl@ss 5.1 | 27242208 |
| eCl@ss 6.0 | 27242208 |
| eCl@ss 7.0 | 27242208 |
| eCl@ss 8.0 | 19179290 |
| eCl@ss 9.0 | 19179290 |
| Conformance | FCC Directive, Part 15.247 |
| Output name | Current output |
| UNSPSC 13.2 | 43222604 |
| UNSPSC 6.01 | 30211506 |
| Catalog page | Page 466 (C-8-2013) |
| Contact type | 3 floating PDT contacts |
| Packing unit | 1 pc |
| Screw thread | M3 |
| Set contents | Receiver |
| UNSPSC 12.01 | 43223108 |
| UNSPSC 7.0901 | 43223108 |
| Supply voltage | 24 V DC (at UB) |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D |
| Contact material | Ag, gold-plated |
| Housing material | Polyamide PA non-reinforced |
| Stripping length | 8 mm |
| Connection method | Screw connection |
| Country of origin | CA (Canada) |
| Mounting position | any |
| Custom tariff number | 85176990 |
| Degree of protection | IP20 |
| Supply voltage range | 12 V DC ... 30 V DC |
| Assembly instructions | on standard DIN rail NS 35 in accordance with EN 60715 |
| Current output signal | 4 mA ... 20 mA |
| Mechanical service life | 1x 107 |
| Max. current consumption | 125 mA |
| Service life, electrical | 8 x 105cycles at a switching current of 0.5 A |
| Maximum switching voltage | 30 V DC |
| Limiting continuous current | 0.5 A |
| Typical current consumption | 85 mA |
| Electromagnetic compatibility | FCC Part 15.247 / ISC RSS 210 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Load/output load current output | 700 Ω (at UB= 24 V, RB= [UB-10 V] / 20 mA) |
| Conductor cross section AWG max. | 14 |
| Conductor cross section AWG min. | 24 |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section solid min. | 0.2 mm² |
| Weight per Piece (excluding packing) | 300.400 g |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
