In Stock Hot Product
RA4141P

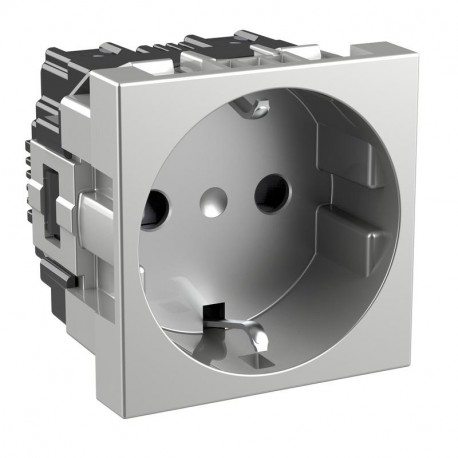

RA4141P BTCINO CL-BASE 2P+T 16A/230V 2M ALUM
$10.64USD
988 in stock
Key Specifications
Feature Name:Feature Value
Model (EF000010):Socket outlet CEE 7/3 (type F)
Colour (EF000007):Aluminium
Lockable (EF000113):No
Supplier Information
BTICINO
Products: 26
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Model (EF000010) | Socket outlet CEE 7/3 (type F) |
| Colour (EF000007) | Aluminium |
| Lockable (EF000113) | No |
| Material (EF002169) | Plastic |
| Frequency (EF000416) | 50 Hz |
| Cover (specifications) | Other |
| Model (specifications) | CEE 7/3 socket (type F) |
| Transparent (EF006243) | No |
| Colour (specifications) | aluminium |
| Device depth (EF008810) | 41.5 mm |
| Device width (EF008808) | 45 mm |
| Halogen free (EF000025) | Yes |
| Device height (EF008809) | 45 mm |
| Lockable (specifications) | No |
| Material (specifications) | Plastic |
| Prewired (specifications) | No |
| Connection type (EF000124) | Screwed terminal |
| Eject-mechanism (EF001051) | No |
| Impact strength (EF004293) | IK04 |
| Metallic colour (EF015260) | No |
| Mounting method (EF000003) | Flush mounted |
| Nominal current (EF000001) | 16 A |
| Nominal voltage (EF000002) | 250 V |
| With hinged lid (EF000117) | No |
| frequency (specifications) | 50-60 Hz |
| Material quality (EF001257) | Thermoplastic |
| Number of phases (EF000351) | 1 |
| With signal lamp (EF000198) | No |
| Surface finishing (EF006569) | Matt |
| Transparent (specifications) | No |
| Type of fastening (EF002442) | Snap mounting (engagement) |
| Cable Holder (specifications) | Cable glands |
| Device Depth (specifications) | 41.5 mm |
| Device width (specifications) | 45 mm |
| Halogen-free (specifications) | Yes |
| Imprint/indication (EF003823) | None |
| Insulated mounting (EF001588) | No |
| Protective contact (EF017116) | Other |
| Surface protection (EF000139) | Lacquered |
| With on/off switch (EF000488) | No |
| Device height (specifications) | 45 mm |
| Rated fault current (EF002358) | 16 mA |
| With miniature fuse (EF006571) | No |
| Metallic color (specifications) | No |
| Power Delivery (specifications) | No |
| RAL-number (similar) (EF003882) | 7035 |
| Special power supply (EF001334) | EV006426 |
| Surface Finish (specifications) | Mate |
| Attachment Type (specifications) | Hemming |
| Nominal Voltage (specifications) | 250 V |
| Number of Units (specifications) | 1 |
| Number of ports USB-A (EF000997) | 0 |
| Number of ports USB-C (EF017049) | 0 |
| Type of voltage (specifications) | AC |
| Compatible IFTTT (specifications) | No |
| Connected Object (specifications) | No |
| Material quality (specifications) | Thermoplastic |
| Number of phases (specifications) | 1 |
| Printing/Marking (specifications) | none |
| Rotated central insert (EF001331) | No |
| Surge protection (specifications) | No |
| Type of mounting (specifications) | Recessed mounted (plaster) |
| With function lighting (EF008861) | No |
| With microfusion (specifications) | No |
| With signal lamp (specifications) | No |
| Connection Method (specifications) | Screw-on terminal |
| IFTTT support available (EF011072) | No |
| Impact resistance (specifications) | IK04 |
| Nominal intensity (specifications) | 16 A |
| Over voltage protection (EF001332) | No |
| Surface treatment (specifications) | Varnishing |
| Terminal capacity (specifications) | 1.5-2.5 mm² |
| With flip-top lid (specifications) | No |
| Anti-bacterial treatment (EF023790) | No |
| Core cross-section (specifications) | 1.5-2.5 mm² |
| Fault current protection (EF001333) | No |
| Installation Depth (specifications) | 31.5 mm |
| Protective contact (specifications) | Other |
| With loop function (specifications) | Yes |
| With on/off switch (specifications) | No |
| Expulsion mechanism (specifications) | No |
| Storage temperature (specifications) | -10-70 °C |
| With orientation lighting (EF008862) | No |
| Fault Current Rating (specifications) | 16 mA |
| RAL number (similar) (specifications) | 7035 |
| Special power supply (specifications) | No special power supply |
| With Wi-Fi signal repeater (EF013509) | No |
| With loop through function (EF006604) | Yes |
| Connection Cable Type (specifications) | Flexible or rigid |
| Isolated installation (specifications) | No |
| Number of USB-A ports (specifications) | 0 |
| Number of USB-C ports (specifications) | 0 |
| Operating Temperature (specifications) | -5-35 °C |
| Rotated center insert (specifications) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Label Space/Print Area (specifications) | No |
| Antibacterial treatment (specifications) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Residual Current Device (specifications) | No |
| With adjustable lighting (specifications) | No |
| With functional lighting (specifications) | No |
| Label space/information surface (EF001035) | No |
| With built-in bluetooth speaker (EF016914) | No |
| Compatible with Google Assistant (EF014926) | No |
| Number of active contacts (flat) (EF011999) | 0 |
| With Wi-Fi signal repeater (specifications) | No |
| With enhanced contact protection (EF000389) | Yes |
| Number of active contacts (round) (EF011998) | 2 |
| Number of modules (module system) (EF009573) | 2 |
| Compatible with Amazon Alexa (specifications) | No |
| Number of active contacts (square) (EF017115) | 0 |
| Compatible with Apple HomeKit (specifications) | No |
| Number of socket outlets switchable (EF008814) | 0 |
| Min. depth of the recessed box (specifications) | 41.5 mm |
| For heavy conditions according to VDE (EFDE0005) | No |
| With built-in bluetooth speaker (specifications) | No |
| Compatible with Google Assistant (specifications) | No |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| With enhanced contact protection (specifications) | Yes |
| Min. depth of built-in installation box (EF012278) | 41.5 mm |
| Number of active (round) contacts (specifications) | 1 |
| Number of interchangeable sockets (specifications) | 0 |
| Concurrently switching neutral conductor (EF005997) | No |
| Suitable for protection grade (IP) (specifications) | IP20 |
| Number of active contacts (drawings) (specifications) | 0 |
| For server conditions according to VDE (specifications) | No |
| Number of modules (in case of modular design) (specifications) | 2 |
| Display of markings on the connection terminals (specifications) | No |
Product Description
Base 2P+T Classia - screw connection - Aluminum - 2 modules
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
This socket allows you to connect an electrical or electronic device with standard German plugs, child protection blinds, aluminum color.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
