In Stock Hot Product

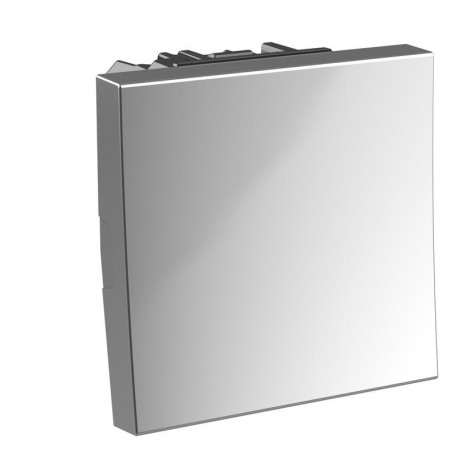

RA4005M2P
RA4005M2P BTCINO CL-PULS 1P 10A 2M ALUM
$9.22USD
1133 in stock
Key Specifications
Feature Name:Feature Value
Model (EF000010):Single push button
Colour (EF000007):Aluminium
Imprint (EF000131):None
Supplier Information
BTICINO
Products: 26
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Model (EF000010) | Single push button |
| Colour (EF000007) | Aluminium |
| Imprint (EF000131) | None |
| Material (EF002169) | Plastic |
| Model (specifications) | Single push button |
| Transparent (EF006243) | No |
| Colour (specifications) | aluminium |
| Device depth (EF008810) | 39 mm |
| Device width (EF008808) | 45 mm |
| Halogen free (EF000025) | Yes |
| Device height (EF008809) | 45 mm |
| Rated current (EF000227) | 10 A |
| With lighting (EF003829) | No |
| Material (specifications) | Plastic |
| Connection type (EF000124) | Screwed terminal |
| Impact strength (EF004293) | IK04 |
| Mounting method (EF000003) | Flush mounted |
| Nominal voltage (EF000002) | 250 V |
| Number of poles (EF001391) | 1 |
| frequency (specifications) | 50-60 Hz |
| Contactless type (EF015811) | No |
| Material quality (EF001257) | Thermoplastic |
| With light (specifications) | No |
| With signal lamp (EF000198) | No |
| Number of rockers (EF003816) | 1 |
| Surface finishing (EF006569) | Matt |
| Transparent (specifications) | No |
| Type of fastening (EF002442) | Other |
| With light source (EF005905) | No |
| Device Depth (specifications) | 39 mm |
| Device width (specifications) | 45 mm |
| Halogen-free (specifications) | Yes |
| Overprinting (specifications) | none |
| Surface protection (EF000139) | Lacquered |
| Device height (specifications) | 45 mm |
| Method of operation (EF000006) | Push button |
| Assembly arrangement (EF000005) | Insert for modular wiring accessories |
| RAL-number (similar) (EF003882) | 7035 |
| Surface Finish (specifications) | Mate |
| Attachment Type (specifications) | Other |
| Nominal Voltage (specifications) | 250 V |
| Nominal current (specifications) | 10 A |
| Number of poles (specifications) | 1 |
| Type of voltage (specifications) | AC |
| Compatible IFTTT (specifications) | No |
| Contactless Type (specifications) | No |
| Material quality (specifications) | Thermoplastic |
| Type of mounting (specifications) | Module for system interruption program, Recessed mounted (plaster) |
| With signal lamp (specifications) | No |
| Connection Method (specifications) | Screw-on terminal |
| Feedback-signal contact (EF001181) | No |
| IFTTT support available (EF011072) | No |
| Impact resistance (specifications) | IK04 |
| Neutral Mandatory (specifications) | No |
| Surface treatment (specifications) | Varnishing |
| Terminal capacity (specifications) | 1.5-2.5 mm² |
| Type of operation (specifications) | Button |
| With light source (specifications) | No |
| Anti-bacterial treatment (EF023790) | No |
| Core cross-section (specifications) | 1.5-2.5 mm² |
| Installation Depth (specifications) | 39 mm |
| Monitoring contacts (specifications) | No |
| Storage temperature (specifications) | -10-70 °C |
| RAL number (similar) (specifications) | 7035 |
| Connection Cable Type (specifications) | Flexible or rigid |
| Number of rocker arms (specifications) | 1 |
| Operating Temperature (specifications) | -5-35 °C |
| Compatible with Amazon Alexa (EF014927) | No |
| Label Space/Print Area (specifications) | No |
| Number of revolving contacts (EF015810) | 0 |
| Antibacterial treatment (specifications) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Label space/information surface (EF001035) | No |
| Compatible with Google Assistant (EF014926) | No |
| Number of investor contacts (specifications) | 0 |
| Number of modules (module system) (EF009573) | 2 |
| Number of rotating contacts (specifications) | 0 |
| Compatible with Amazon Alexa (specifications) | No |
| Compatible with Apple HomeKit (specifications) | No |
| Min. depth of the recessed box (specifications) | 37 mm |
| Compatible with Google Assistant (specifications) | No |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Min. depth of built-in installation box (EF012278) | 37 mm |
| Number of Normally Closed Contacts (specifications) | 0 |
| Number of contacts normally opened (specifications) | 1 |
| Suitable for protection grade (IP) (specifications) | IP20 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of modules (in case of modular design) (specifications) | 2 |
| Display of markings on the connection terminals (specifications) | No |
Product Description
Classia pushbutton - 10 A-250 Vac - Aluminium - 2 modules
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The push button is suitable for various everyday uses: lighting, door opening, doorbell, timer...
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
