In Stock Hot Product
RA4001M2P

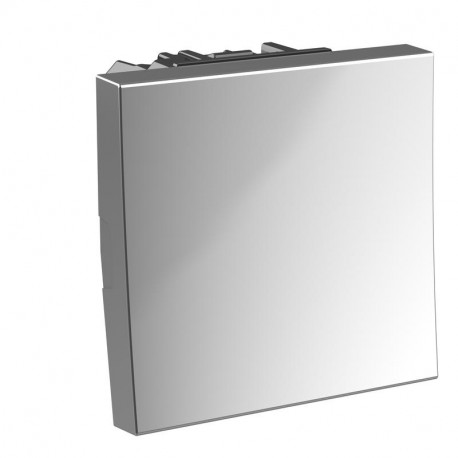

RA4001M2P BTCINO CL-INT 1P 10AX 2M ALUM
$7.98USD
1289 in stock
Key Specifications
Feature Name:Feature Value
Colour (EF000007):Aluminium
Lighting (EF000134):No
Material (EF002169):Plastic
Supplier Information
BTICINO
Products: 26
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Colour (EF000007) | Aluminium |
| Lighting (EF000134) | No |
| Material (EF002169) | Plastic |
| Colour (specifications) | aluminium |
| Device depth (EF008810) | 43 mm |
| Device width (EF008808) | 45 mm |
| Halogen free (EF000025) | Yes |
| Device height (EF008809) | 45 mm |
| Rated current (EF000227) | 10 A |
| Wiring system (EF002960) | Single pole switch |
| Built-in depth (EF000218) | 33 mm |
| Heating switch (EF016279) | No |
| Lighting (specifications) | No |
| Material (specifications) | Plastic |
| Connection type (EF000124) | Screwed terminal |
| Impact strength (EF004293) | IK04 |
| Mounting method (EF000003) | Flush mounted |
| Nominal voltage (EF000002) | 250 V |
| frequency (specifications) | 50-60 Hz |
| Material quality (EF001257) | Thermoplastic |
| Type of lighting (EF001401) | Other |
| Function lighting (EF009420) | Other |
| Number of rockers (EF003816) | 1 |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Engage (snap) |
| Device Depth (specifications) | 43 mm |
| Device width (specifications) | 45 mm |
| Halogen-free (specifications) | Yes |
| Push button switch (EF003895) | Yes |
| Surface protection (EF000139) | Lacquered |
| Device height (specifications) | 45 mm |
| Lighting Type (specifications) | Other |
| Method of operation (EF000006) | Rocker |
| With mounting plate (EF000118) | No |
| Assembly arrangement (EF000005) | Insert for modular wiring accessories |
| Cabling System (specifications) | 1-pole disconnect switch |
| Heating switch (specifications) | No |
| RAL-number (similar) (EF003882) | 7035 |
| Surface Finish (specifications) | Mate |
| Attachment Type (specifications) | Lock in position |
| Nominal Voltage (specifications) | 250 V |
| Nominal current (specifications) | 10 A |
| Type of voltage (specifications) | AC |
| Compatible IFTTT (specifications) | No |
| Material quality (specifications) | Thermoplastic |
| Type of mounting (specifications) | Module for system interruption program, Recessed mounted (plaster) |
| Washing machine switch (EF006316) | No |
| Connection Method (specifications) | Screw-on terminal |
| Feedback-signal contact (EF001181) | No |
| IFTTT support available (EF011072) | No |
| Impact resistance (specifications) | IK04 |
| Lighting function (specifications) | Other |
| Neutral Mandatory (specifications) | Yes |
| Surface treatment (specifications) | Varnishing |
| Terminal capacity (specifications) | 1.5-2.5 mm² |
| Type of operation (specifications) | Rocker/button |
| Anti-bacterial treatment (EF023790) | No |
| Installation Depth (specifications) | 33 mm |
| Push Button Switch (specifications) | Yes |
| Colour of switch operator (EF015518) | Aluminium |
| Monitoring contacts (specifications) | No |
| Storage temperature (specifications) | -10-70 °C |
| With mounting plate (specifications) | No |
| RAL number (similar) (specifications) | 7035 |
| Connection Cable Type (specifications) | Flexible or rigid |
| Number of rocker arms (specifications) | 1 |
| Operating Temperature (specifications) | -5-35 °C |
| Compatible with Amazon Alexa (EF014927) | No |
| Washing machine switch (specifications) | No |
| Antibacterial treatment (specifications) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Switching element color (specifications) | aluminium |
| Label space/information surface (EF009419) | No |
| Label space/print surface (specifications) | No |
| Compatible with Google Assistant (EF014926) | No |
| Number of modules (module system) (EF009573) | 2 |
| Compatible with Amazon Alexa (specifications) | No |
| Compatible with Apple HomeKit (specifications) | No |
| Min. depth of the recessed box (specifications) | 43 mm |
| Compatible with Google Assistant (specifications) | No |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Min. depth of built-in installation box (EF012278) | 43 mm |
| Switching current for fluorescent lamps (EF003888) | 10 AX |
| Suitable for protection grade (IP) (specifications) | IP20 |
| Switching current for fluorescent lamps (specifications) | 10 AX |
| Number of modules (in case of modular design) (specifications) | 2 |
| Display of markings on the connection terminals (specifications) | No |
Product Description
Switch Classia - 10 AX-250 Vac - Aluminum - 2 modules
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The 10A 1-way switch of the Classia series allows lighting control.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
