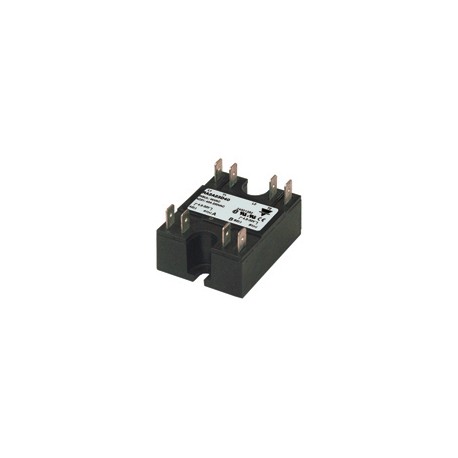

RA2A40D25M

Solid State Relays Industrial, 2-PoleZS Type RA2A· 2-Pole AC Solid State Relay· Zero switching· For resistive and inductive AC loads· Direct copper bonding (DCB) technology· LED indication· Rated operational current: 2 x 25 and 2 x 40AACrms· Rated operational voltage: 230 - 600VACrms· Input range: 4.5 - 32VDC· Blocking voltage: Up to 1200Vp· Opto-isolation: 4000VACrmsProduct DescriptionOrdering KeyRA 2 A 48 D 25 MThis 2-pole industrial relay minimises thespacerequire- ments in a control cabinet without compromising perfor- mance. By applying an input voltage on control A, the corre- sponding output semicondcu- tor is activated at the first zero crossing of the lineType Selectionvoltage.The same applies to control B.LEDs indicate the controlstatusofeachpole. The optimised design is free of moulding mass to reduce inter- nal mechanical stress.The RA2A..M types have been specially customised for demanding inductive loads.Solid State Relay Number of poles Zero switchingRated operational voltageControl voltageRated operational currentLoad typeSwitching mode Rated operationalRated operational ControlBlocking Load voltagecurrent voltagevoltage typeA: Zero switching23: 230VACrms 25: 2 x 25AACrmsD: 4.5 - 32VDC 23: 650Vp M: Inductive40:400VACrms 40: 2 x 40AACrms 40: 850Vp48:480VACrms48: 1200Vp60:600VACrms60: 1200VpSelection GuideRated operational Blocking voltageControl voltageRated operational currentvoltage2 x 25AACrms 2 x 40AACrms230VACrms 650Vp 4.5 - 32VDCRA2A23D25 RA2A23D40RA2A23D25MRA2A23D40M400VACrms 850Vp 4.5 - 32VDCRA2A40D25 RA2A40D40RA2A40D25MRA2A40D40M480VACrms 1200Vp4.5 - 32VDCRA2A48D25 RA2A48D40RA2A48D25MRA2A48D40M600VACrms 1200Vp4.5 - 32VDCRA2A60D25 RA2A60D40RA2A60D25MRA2A60D40MInputSpecificationsControl voltage range4.5 - 32VDC Pick-up voltage4.25VDC Drop-out voltage2VDCInputcurrent per pole@ max. input voltage £10mAResponse time pick-up£10ms@ 50 HzResponse time drop-out£10ms@ 50 HzHousingSpecificationsWeightApprox. 85g Housing materialNoryl GFN 1, black Base plate25, 40AAluminium, nickel-plated40A (M type)Copper, nickel-platedFASTONTerminal size6.3mmSpecifications are subject to change without notice (28.02.2007) 1
