In Stock Hot Product
R89F-MS0938LP-S1
R89F-MS0938LP-S1 R89F0021D 686238 OMRON AC Axial Fan, Plastic Blade, 92x38 Frame, Low Speed, 1 x Finger Guar..
$0.00USD
3498 in stock
Key Specifications
Size:92 x 92 x 38 mm
Rated power:3.0 VA

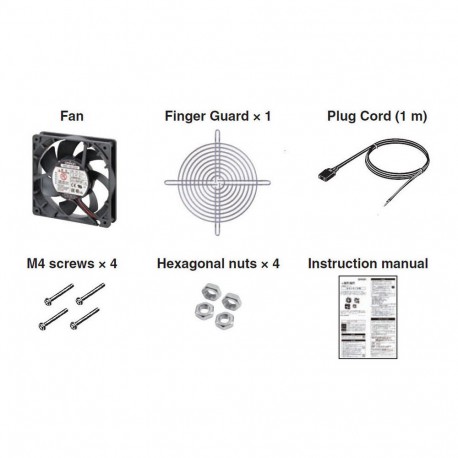

Set content:1 x Finger guard, Fan, M4 x 55 mm Screws, Nuts, Plug cord (1 m)
Rated current:0.06 A
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Size | 92 x 92 x 38 mm |
| Rated power | 3.0 VA |
| Set content | 1 x Finger guard, Fan, M4 x 55 mm Screws, Nuts, Plug cord (1 m) |
| Rated current | 0.06 A |
| Noise emission | 33 dB(A) |
| Maximum flow rate | 1.18 m³/min |
| Rated rotational speed | 3100 r/min |
| Maximum static pressure | 56 Pa |
| Operating voltage at AC 50 Hz | 90-264 V |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
