R88M-K2K030F-S2

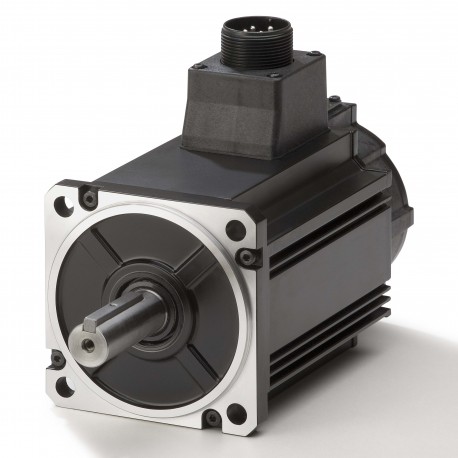

R88M-K2K030F-S2 R8MK0761A 285561 OMRON Accurax G5 Motor 2kW, 400V, 3000RPM, 6.37Nm
$2,492.23USD
51 in stock
Key Specifications
():R88A-CRKC020NR-E
Weight:5300 g
Peak torque:19.1 Nm
Rated speed:3000 Rpm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | R88A-CRKC020NR-E |
| Weight | 5300 g |
| Peak torque | 19.1 Nm |
| Rated speed | 3000 Rpm |
| Encoder type | Incremental |
| Rated output | 2 kW |
| Rated torque | 6.37 Nm |
| Shaft diameter | 19 mm |
| Shaft with key | |
| Shaft with tap | |
| Motor with brake | |
| Encoder resolution | 20 Bit |
| Motor with oil seal | |
| Drive supply voltage | 400 V three phase |
| Servo control method | Analog, EtherCAT, MECHATROLINK II, Pulse train |
| Flange size square (LC) | 100 mm |
Product Description
G5 series AC servo motor, 2 kW, 400 VAC, 3000 rpm, 6.37 Nm, Incremental encoder
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
