R88M-K2K020F-S2

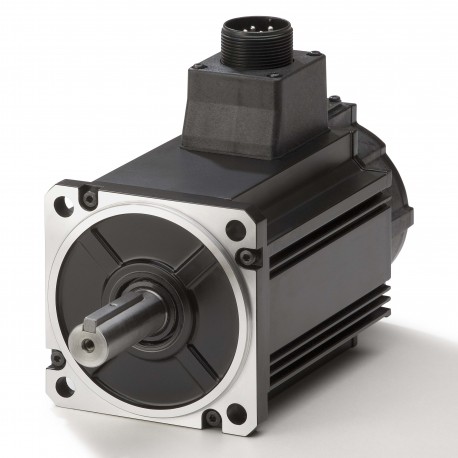

R88M-K2K020F-S2 R8MK1062M 285584 OMRON Accurax G5 Motor 2.0KW, 400V, 2000RPM, 9.55Nm
$0.00USD
3780 in stock
Key Specifications
():R88A-CRKC020NR-E
Weight:8000 g
Peak torque:28.7 Nm
Rated speed:2000 Rpm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | R88A-CRKC020NR-E |
| Weight | 8000 g |
| Peak torque | 28.7 Nm |
| Rated speed | 2000 Rpm |
| Encoder type | Incremental |
| Rated output | 2 kW |
| Rated torque | 9.55 Nm |
| Shaft diameter | 22 mm |
| Shaft with key | |
| Shaft with tap | |
| Motor with brake | |
| Encoder resolution | 20 Bit |
| Motor with oil seal | |
| Drive supply voltage | 400 V three phase |
| Servo control method | Analog, EtherCAT, MECHATROLINK II, Pulse train |
| Flange size square (LC) | 130 mm |
Product Description
G5 series AC servo motor, 2 kW, 400 VAC, 2000 rpm, 9.55 Nm, Incremental encoder
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
