R88M-G40030H-S2

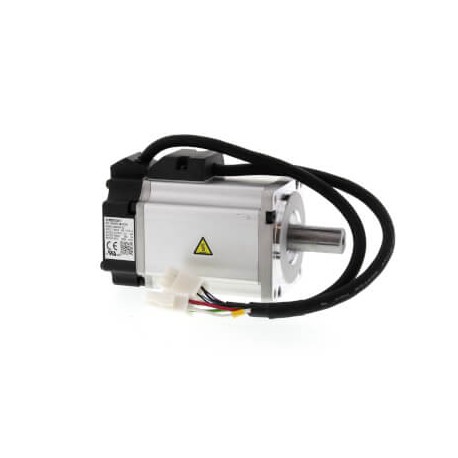

R88M-G40030H-S2 R8MG0373B 285892 OMRON G/SS2 series motor 400W, 200V, 3000RPM, 1.3N.m.
$932.31USD
60 in stock
Key Specifications
Weight:1200 g
Peak torque:3.67 Nm
Rated speed:3000 Rpm
Encoder type:Incremental
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 1200 g |
| Peak torque | 3.67 Nm |
| Rated speed | 3000 Rpm |
| Encoder type | Incremental |
| Rated output | 0.4 kW |
| Rated torque | 1.3 Nm |
| Shaft diameter | 14 mm |
| Shaft with key | |
| Shaft with tap | |
| Motor with brake | |
| Encoder resolution | 13 Bit |
| Motor with oil seal | |
| Drive supply voltage | 230 V single phase |
| Servo control method | Analog, MECHATROLINK II, Pulse train |
| Flange size square (LC) | 60 mm |
Product Description
G-Series/SmartStep 2 AC servo motor (cylinder type), 400 W, 200 VAC, 3000 rpm, 1.3 Nm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
