QUINT4-UPS/24DC/24DC/20

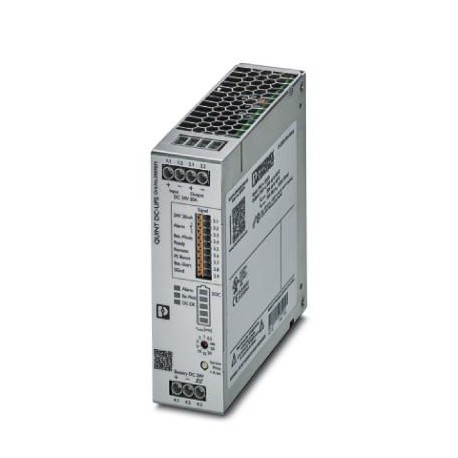

QUINT4-UPS/24DC/24DC/20 2907071 PHOENIX CONTACT Uninterruptible power supply
$0.00USD
4324 in stock
Key Specifications
GTIN:4055626171272
Orderkey:2907071
Packing unit:1 pc
Country of origin:CN (China)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626171272 |
| Orderkey | 2907071 |
| Packing unit | 1 pc |
| Country of origin | CN (China) |
| Custom tariff number | 85371091 |
| Efficiency (Input data) | typ. 98 % |
| (Output data (general)) | 18 V DC ... 32 V DC |
| No-load proof (Input data) | yes |
| (Energy storage (battery)) | Reach |
| Climatic class (Dimensions) | 3K3 (EN 60721) |
| Depth (Key Commercial Data) | 125 mm |
| Width (Key Commercial Data) | 40 mm |
| Height (Key Commercial Data) | 130 mm |
| Switch-over time (Input data) | 0 ms |
| (Connection data for battery) | UL/C-UL Listed ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) |
| Stripping length (General data) | 8 mm |
| Connection method (General data) | Screw connection |
| Degree of pollution (Dimensions) | 2 |
| Installation height (Dimensions) | ≤ 4000 m |
| Short-circuit-proof (Input data) | yes |
| Degree of protection (Dimensions) | IP20 |
| Weight (Energy storage (battery)) | 0.6 kg |
| Input voltage (Ambient conditions) | 24 V DC |
| Shock (Connection data for battery) | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
| Switch-on time (Ambient conditions) | max. 3 s |
| Tightening torque max (General data) | 0.6 Nm |
| Weight per Piece (excluding packing) | 681.700 g |
| Tightening torque, min (General data) | 0.5 Nm |
| UPS connection in series (Input data) | no |
| Voltage (Connection data for battery) | 10 V (Test Level 3) |
| Comments (Connection data for battery) | Criterion B |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| UPS connection in parallel (Input data) | no |
| Input voltage range (Ambient conditions) | 18 V DC ... 30 V DC |
| Internal input fuse (Ambient conditions) | no |
| Inrush surge current (Ambient conditions) | ≤ 8 A (≤ 4 ms) |
| Stripping length (Connection data, input) | 8 mm |
| Connection method (Connection data, input) | Screw connection |
| Stripping length (Connection data, output) | 8 mm |
| UL approvals (Connection data for battery) | UL/C-UL Listed UL 61010-1 |
| Connection method (Connection data, output) | Screw connection |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K) |
| Electric strength, max. (Ambient conditions) | 35 V DC (Protected against polarity reversal) |
| Fixed connect threshold (Ambient conditions) | 22 V DC |
| Noise emission (Connection data for battery) | Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply) |
| Noise immunity (Connection data for battery) | Immunity according to EN 61000-6-2 (industrial) |
| Output voltage range (Output data (general)) | 18 V DC ... 30 V DC (UOUT= UIN- 0.4 V DC) |
| Buffer time (Output data (battery operation)) | 22 min. (12 Ah) |
| Frequency range (Connection data for battery) | 0.15 MHz ... 80 MHz |
| Tightening torque max (Connection data, input) | 0.6 Nm |
| Charging time (Output data (battery operation)) | 165 min. (12 Ah) |
| Conductor cross section AWG max. (General data) | 10 |
| Conductor cross section AWG min. (General data) | 30 |
| Contact discharge (Connection data for battery) | 4 kV (Test Level 2) |
| IQ-Technology (Output data (battery operation)) | yes |
| Max. capacity (Output data (battery operation)) | 135 Ah |
| Tightening torque max (Connection data, output) | 0.6 Nm |
| Tightening torque, min (Connection data, input) | 0.5 Nm |
| Voltage drop, input/output (Ambient conditions) | 0.4 V DC |
| Reverse polarity protection (Ambient conditions) | yes |
| Tightening torque, min (Connection data, output) | 0.5 Nm |
| Conductor cross section solid max. (General data) | 6 mm² |
| Conductor cross section solid min. (General data) | 0.2 mm² |
| Test field strength (Connection data for battery) | 3 V/m (Test Level 2) |
| Dynamic Boost (IDyn.Boost) (Output data (general)) | 30 A (5 s) |
| Static Boost (IStat.Boost) (Output data (general)) | 25 A |
| Low Voltage Directive (Connection data for battery) | Conformance with Low Voltage Directive 2014/35/EC |
| Standards/regulations (Connection data for battery) | EN 61000-4-8 |
| Vibration (operation) (Connection data for battery) | 2.3g |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Battery technology (Output data (battery operation)) | VRLA, VRLA-WTR, LI-ION |
| Conductor cross section flexible max. (General data) | 4 mm² |
| Conductor cross section flexible min. (General data) | 0.2 mm² |
| Output voltage range (Output data (mains operation)) | 19 V DC ... 28 V DC (UOUT= UBAT- 0.4 V DC) |
| Temperature sensor (Output data (battery operation)) | yes |
| Depth with alternative assembly (Key Commercial Data) | 42 mm |
| MTBF (IEC 61709, SN 29500) (Energy storage (battery)) | > 1940000 h (25 °C) |
| Width with alternative assembly (Key Commercial Data) | 123 mm |
| Height with alternative assembly (Key Commercial Data) | 130 mm |
| Selective Fuse Breaking (ISFB) (Output data (general)) | 120 A (15 ms) |
| Ambient temperature (start-up type tested) (Dimensions) | -40 °C |
| Energy storage device connection in series (Input data) | no |
| Conductor cross section AWG max. (Connection data, input) | 10 |
| Conductor cross section AWG min. (Connection data, input) | 30 |
| Energy storage device connection in parallel (Input data) | Yes, 5 (observe line protection) |
| Conductor cross section AWG max. (Connection data, output) | 12 |
| Conductor cross section AWG min. (Connection data, output) | 30 |
| Dynamic Boost (IDyn.Boost) (Output data (mains operation)) | 30 A (5 s) |
| Static Boost (IStat.Boost) (Output data (mains operation)) | 25 A |
| Conductor cross section solid max. (Connection data, input) | 6 mm² |
| Conductor cross section solid min. (Connection data, input) | 0.2 mm² |
| Electromagnetic compatibility (Connection data for battery) | Conformance with EMC Directive 2014/30/EU |
| Max. permissible relative humidity (operation) (Dimensions) | ≤ 95 % (at 25 °C, non-condensing) |
| Conductor cross section solid max. (Connection data, output) | 6 mm² |
| Conductor cross section solid min. (Connection data, output) | 0.2 mm² |
| Charge characteristic curve (Output data (battery operation)) | IU0U |
| Environmental protection directive (Energy storage (battery)) | RoHS |
| Conductor cross section flexible max. (Connection data, input) | 4 mm² |
| Conductor cross section flexible min. (Connection data, input) | 0.2 mm² |
| Selective Fuse Breaking (ISFB) (Output data (mains operation)) | 120 A (15 ms) |
| Conductor cross section flexible max. (Connection data, output) | 4 mm² |
| Conductor cross section flexible min. (Connection data, output) | 0.2 mm² |
| Overvoltage category (EN 61010-1) (Connection data for battery) | II (≤ 4000 m) |
| Charging current (configurable) (Output data (battery operation)) | max. 5 A |
| Standard – Safety extra-low voltage (Connection data for battery) | IEC 61010-1 (SELV) |
| Temperature compensation (configurable) (Output data (battery operation)) | 42 mV/K |
| Single conductor/terminal point, stranded, with ferrule, max. (General data) | 4 mm² |
| Single conductor/terminal point, stranded, with ferrule, min. (General data) | 0.2 mm² |
| Nominal capacity (without additional charger) (Output data (battery operation)) | 3 Ah ... 135 Ah |
| End-of-charge voltage (temperature-compensated) (Output data (battery operation)) | 25 V DC ... 32 V DC |
| Single conductor/terminal point, stranded, with ferrule, max. (Connection data, input) | 4 mm² |
| Single conductor/terminal point, stranded, with ferrule, min. (Connection data, input) | 0.2 mm² |
| Inflammability class in acc. with UL 94 (housing / terminal blocks) (Energy storage (battery)) | V0 |
Product Description
QUINT UPS with IQ Technology, rail mountable possibility, input: 24 V DC, output: 24 V DC / 20 A, charging current: 5 A
