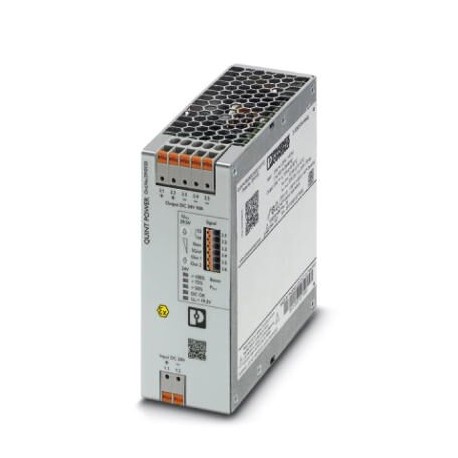

QUINT4-PS/24DC/24DC/10/PT
QUINT4-PS/24DC/24DC/10/PT 2910120 PHOENIX CONTACT Primary-switched QUINT DC/DC converter for DIN rail mounti..
$0.00USD
3216 in stock
Key Specifications
GTIN:4055626537498
Orderkey:2910120
(Drawings):
(Standards):Ex ec ic nC IIC T4 Gc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626537498 |
| Orderkey | 2910120 |
| (Drawings) | |
| (Standards) | Ex ec ic nC IIC T4 Gc |
| Catalog page | Page 289 (C-4-2019) |
| Packing unit | 1 pc |
| (Input data) | 2 kV DC (routine test) |
| (LED signaling) | OVP voltage limitation active |
| Country of origin | TH (Thailand) |
| ETIM 5.0 (eCl@ss) | EC002046 |
| ETIM 6.0 (eCl@ss) | EC002046 |
| ETIM 7.0 (eCl@ss) | EC002046 |
| Diagram (Drawings) | |
| Time (Reliability) | 422400 h |
| Custom tariff number | 85044030 |
| (Ambient conditions) | IEC 60079-15 |
| Input fuse (Drawings) | 30 A (slow-blow, internal) |
| Voltage (Reliability) | 24 V DC |
| Default (LED signaling) | UINinput voltage OK |
| Designation (Standards) | IECEx |
| Digital (LED signaling) | 0 V DC |
| (Conformance/approvals) | 60 Hz |
| Block diagram (Drawings) | |
| (Output connection data) | < 0.8 x UInNom(LED lights up yellow) |
| (Signal connection data) | > 340000 h (60 °C) |
| Shock (Power dissipation) | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
| Switch-on time (Drawings) | < 1 s |
| Temperature (Reliability) | 30 °C |
| Identification (Standards) | IECEx SIQ 19.0001X |
| Mains buffering (Drawings) | typ. 11 ms (24 V DC) |
| Depth (Switching frequency) | 125 mm |
| Width (Switching frequency) | 50 mm |
| Height (Switching frequency) | 130 mm |
| Output current (Reliability) | 10 A |
| UIn (Output connection data) | > 0.8 x UInNom(LED off) |
| Weight (Switching frequency) | 0.8 kg |
| eCl@ss 8.0 (Classifications) | 27210901 |
| eCl@ss 9.0 (Classifications) | 27210901 |
| I/O/S (Conformance/approvals) | asymmetrical |
| Input (Conformance/approvals) | 1 kV (Test Level 3 - symmetrical) |
| POut (Output connection data) | > 100% (LED lights up yellow, output power > 240 W) |
| Signal option (LED signaling) | Output voltage |
| UOut (Output connection data) | > 0.9 x USet(LED lights up green) |
| Input voltage range (Drawings) | 24 V DC -25 % ... +40 % |
| Output (Conformance/approvals) | 1 kV (Test Level 3 - symmetrical) |
| Production test A (Input data) | 2 kV DC |
| Production test B (Input data) | 2 kV DC |
| Production test C (Input data) | 0.5 kV DC |
| Production test D (Input data) | 0.5 kV DC |
| Signal (Conformance/approvals) | 2 kV (Test Level 3 - asymmetrical) |
| Stripping length (Output data) | 10 mm |
| Connection method (Output data) | Push-in connection |
| Voltage (Conformance/approvals) | 1 kV |
| Comments (Conformance/approvals) | Criterion A |
| Efficiency (Switching frequency) | typ. 93.3 % (24 V DC) |
| Typical response time (Drawings) | 300 ms (from SLEEP MODE) |
| Frequency (Conformance/approvals) | 0 Hz |
| Rise time (Input connection data) | < 1 s (UOUT(10 % ... 90 %)) |
| Climatic class (Power dissipation) | 3K3 (EN 60721) |
| Electric strength, max. (Drawings) | 35 V DC (60 s) |
| Hood version (Switching frequency) | Stainless steel X6Cr17 |
| Connection labeling (LED signaling) | 3.5 + |
| Criterion A (Conformance/approvals) | Normal operating behavior within the specified limits. |
| Criterion B (Conformance/approvals) | Temporary impairment to operational behavior that is corrected by the device itself. |
| Criterion C (Conformance/approvals) | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
| Voltage dip (Conformance/approvals) | 0 % |
| Maximum altitude (Power dissipation) | ≤ 5000 mm (> 2000 m, observe derating) |
| Test level 1 (Conformance/approvals) | 15 Hz 150 Hz (Test Level 3) |
| Test level 2 (Conformance/approvals) | 150 Hz 1.5 kHz (Test Level 3) |
| Test level 3 (Conformance/approvals) | 1.5 kHz 15 kHz (Test Level 3) |
| Test level 4 (Conformance/approvals) | 15 kHz 150 kHz (Test Level 3) |
| Test level 5 (Conformance/approvals) | 16.7 Hz 50 Hz 60 Hz 150 Hz 180 Hz (Test Level 3) |
| Test level 6 (Conformance/approvals) | 0 Hz 16.7 Hz 50 Hz 60 Hz (Test Level 3) |
| Voltage dips (Conformance/approvals) | EN 61000-4-29 |
| Weight per Piece (excluding packing) | 1,040.000 g |
| No-load proof (Input connection data) | yes |
| Noise emission (Conformance/approvals) | EN 55016 |
| Protection class (Switching frequency) | Special with SELV input and output |
| Typical current consumption (Drawings) | 13.8 A (24 V DC) |
| Additional text (Conformance/approvals) | Test Level 2 |
| Degree of pollution (Power dissipation) | 2 |
| Frequency range (Conformance/approvals) | 0.15 MHz ... 80 MHz |
| Residual ripple (Input connection data) | < 50 mVPP |
| Discharge in air (Conformance/approvals) | 15 kV (Test Level 4) |
| Inrush current integral (I2t) (Drawings) | < 0.02 A2s |
| Conductor cross section AWG (Output data) | 24 ... 10 |
| Contact discharge (Conformance/approvals) | 8 kV (Test Level 4) |
| Standard designation (Ambient conditions) | Mains variation/undervoltage |
| Type test (IEC/EN 60950-1) A (Input data) | 2 kV DC |
| Type test (IEC/EN 60950-1) B (Input data) | 4 kV DC |
| Type test (IEC/EN 60950-1) C (Input data) | 0.5 kV DC |
| Type test (IEC/EN 60950-1) D (Input data) | 0.5 kV DC |
| Vibration (operation) (Power dissipation) | 5 Hz ... 100 Hz resonance search 2.3g, 90 min., resonance frequency 2.3g, 90 min. (according to DNV GL Class C) |
| Degree of protection (Switching frequency) | IP20 |
| Side element version (Switching frequency) | Aluminum |
| Standards/regulations (Ambient conditions) | EN 61000-4-29 |
| Conductor cross section solid (Output data) | 0.2 mm² ... 6 mm² |
| Power dissipation SLEEP MODE (General data) | < 2 W |
| Power loss nominal load max. (General data) | < 16 W |
| Short-circuit-proof (Input connection data) | yes |
| Test field strength (Conformance/approvals) | 100 A/m |
| Types of signaling (Output connection data) | LED |
| Connection in series (Input connection data) | yes |
| Inrush current limitation typical (Drawings) | 1.5 A (after 1 ms) |
| Insulation voltage input/output (Input data) | 4 kV DC (type test) |
| Low Voltage Directive (Conformance/approvals) | Conformance with Low Voltage Directive 2014/35/EC |
| Conductor cross section flexible (Output data) | 0.2 mm² ... 6 mm² |
| Connection in parallel (Input connection data) | Yes, for redundancy and increased capacity |
| DNV GL noise radiation (Conformance/approvals) | Class B |
| Electrostatic discharge (Conformance/approvals) | EN 61000-4-2 |
| Fast transients (burst) (Conformance/approvals) | EN 61000-4-4 |
| Signals (test level 1) (Conformance/approvals) | 100 kHz 1 MHz (Test Level 2 - symmetrical) |
| Signals (test level 2) (Conformance/approvals) | 100 kHz 1 MHz (Test Level 2 - asymmetrical) |
| Stripping length (Insulation electric strength) | 10 mm |
| Conducted noise emission (Conformance/approvals) | EN 55016 |
| Connection method (Insulation electric strength) | Push-in connection |
| Electromagnetic HF field (Conformance/approvals) | EN 61000-4-3 |
| System deviation, static (Input connection data) | < 1 % (change in load, static 10 % ... 90 %) |
| System deviation, dynamic (Input connection data) | < 3 % (Dynamic load change 10 % ... 90 %, 10 Hz) |
| Dynamic Boost (IDyn.Boost) (Input connection data) | 20 A (5 s) |
| EMC requirements, power plant (Ambient conditions) | IEC 61850-3 |
| Pulse-shape magnetic field (Conformance/approvals) | EN 61000-4-9 |
| Static Boost (IStat.Boost) (Input connection data) | 12.5 A |
| Surge voltage load (surge) (Conformance/approvals) | EN 61000-4-5 |
| Ambient temperature (operation) (Power dissipation) | -25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K) |
| Attenuated oscillating wave (Conformance/approvals) | EN 61000-4-18 |
| Feedback voltage resistance (Input connection data) | ≤ 35 V DC |
| MTBF (IEC 61709, SN 29500) (Signal connection data) | > 1380000 h (25 °C) |
| Nominal output current (IN) (Input connection data) | 10 A |
| Nominal output voltage (UN) (Input connection data) | 24 V DC |
| Overvoltage category EN 61010-1 (Power dissipation) | II |
| Overvoltage category EN 62477-1 (Power dissipation) | III |
| Depth with alternative assembly (Switching frequency) | 53 mm |
| Electromagnetic compatibility (Conformance/approvals) | Conformance with EMC Directive 2014/30/EU |
| Input, output (test level 1) (Conformance/approvals) | 10 MHz (Test Level 2 - asymmetrical) |
| Input, output (test level 2) (Conformance/approvals) | 100 kHz 1 MHz (Test Level 2 - asymmetrical) |
| Width with alternative assembly (Switching frequency) | 122 mm |
| DNV GL conducted interference (Conformance/approvals) | Class B |
| Height with alternative assembly (Switching frequency) | 130 mm |
| Selective Fuse Breaking (ISFB) (Input connection data) | 60 A (15 ms) |
| EMC requirements for noise emission (Ambient conditions) | EN 61000-6-3 |
| EMC requirements for noise immunity (Ambient conditions) | EN 61000-6-1 |
| Damped oscillating magnetic field (Conformance/approvals) | EN 61000-4-10 |
| Magnetic circuit breaker tripping (Input connection data) | A1...A6 / B2...B6 / C1...C3 / Z1...Z6 |
| Stripping length (Signal contacts – signal ground SGnd) | 8 mm |
| (Signal contacts – signal output Out 1 (configurable)) | Output power |
| (Signal contacts – signal output Out 2 (configurable)) | UINinput voltage OK |
| Conductor cross section AWG (Insulation electric strength) | 24 ... 10 |
| Connection method (Signal contacts – signal ground SGnd) | Push-in connection |
| Alternating component of DC voltage (Conformance/approvals) | EN 61000-4-17 |
| Ambient temperature (storage/transport) (Power dissipation) | -40 °C ... 85 °C |
| Conductor cross section solid (Insulation electric strength) | 0.2 mm² ... 6 mm² |
| Maximum power dissipation in no-load condition (General data) | < 5 W |
| Ambient temperature (start-up type tested) (Power dissipation) | -40 °C |
| System deviation, input voltage change (Input connection data) | < 0.1 % (change in input voltage ±10 %) |
| Conductor cross section flexible (Insulation electric strength) | 0.2 mm² ... 6 mm² |
| Analog (Signal contacts – signal output Out 1 (configurable)) | 4 mA ... 20 mA ±5 % (Load ≤400 ) |
| Main converter stage (Life expectancy (electrolytic capacitors)) | 67 kHz ... 135 kHz |
| Default (Signal contacts – signal output Out 1 (configurable)) | Output power |
| Default (Signal contacts – signal output Out 2 (configurable)) | Output voltage |
| Digital (Signal contacts – signal output Out 1 (configurable)) | 0 V DC |
| Function (Signal contacts – remote signal input (configurable)) | Signal ground |
| Max. permissible relative humidity (operation) (Power dissipation) | ≤ 95 % (at 25 °C, non-condensing) |
| Setting range of the output voltage (USet) (Input connection data) | 24 V DC ... 29.5 V DC (> 24 V DC, constant capacity) |
| Asymmetrical conducted disturbance variables (Conformance/approvals) | EN 61000-4-16 |
| Conductor cross section AWG (Signal contacts – signal ground SGnd) | 24 ... 16 |
| Auxiliary converter stage (Life expectancy (electrolytic capacitors)) | 190 kHz ... 220 kHz |
| Conductor cross section solid (Signal contacts – signal ground SGnd) | 0.2 mm² ... 1 mm² |
| Default (Signal contacts – signal output relay 13/14 (configurable)) | Output power ON (>40 kΩ/24 V DC/open bridge between REM and SGnd) |
| Function (Signal contacts – signal output relay 13/14 (configurable)) | Output power ON/OFF (remote) |
| Signal option (Signal contacts – signal output Out 1 (configurable)) | Output voltage |
| Signal option (Signal contacts – signal output Out 2 (configurable)) | Output current |
| Switch contact (Signal contacts – signal output Out 2 (configurable)) | floating |
| Conductor cross section flexible (Signal contacts – signal ground SGnd) | 0.2 mm² ... 1.5 mm² |
| Protection against overvoltage at the output (OVP) (Input connection data) | ≤ 32 V DC |
| Connection labeling (Signal contacts – remote signal input (configurable)) | 3.4 + |
| Flexible conductor cross section (ferrule with plastic sleeve) (Output data) | 0.2 mm² 4 mm² |
| Reference potential (Signal contacts – remote signal input (configurable)) | to OUT1, OUT2, REM |
| Connection labeling (Signal contacts – signal output Out 1 (configurable)) | 3.6 + |
| Connection labeling (Signal contacts – signal output Out 2 (configurable)) | 3.1, 3.2 |
| Maximum contact load (Signal contacts – signal output Out 2 (configurable)) | 24 V DC |
| Connection labeling (Signal contacts – signal output relay 13/14 (configurable)) | 3.3 + |
| Flexible conductor cross section flexible (ferrule, w/o plastic sleeve) (Output data) | 0.2 mm² 4 mm² |
| Inflammability class in acc. with UL 94 (housing / terminal blocks) (Switching frequency) | V0 |
| Flexible conductor cross section (ferrule with plastic sleeve) (Insulation electric strength) | 0.2 mm² 4 mm² |
| Flexible conductor cross section flexible (ferrule, w/o plastic sleeve) (Insulation electric strength) | 0.2 mm² 4 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) (Signal contacts – signal ground SGnd) | 0.2 mm² 0.75 mm² |
| Flexible conductor cross section flexible (ferrule, w/o plastic sleeve) (Signal contacts – signal ground SGnd) | 0.2 mm² 1.5 mm² |
Product Description
DC/DC Switched Primary Converter, QUINT POWER, Rail Mounting, SFB Technology (Selective Fuse Breaking),- 24 VDC, Output: 24 VDC / 10 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Block diagram
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
