QTC 2,5-TG

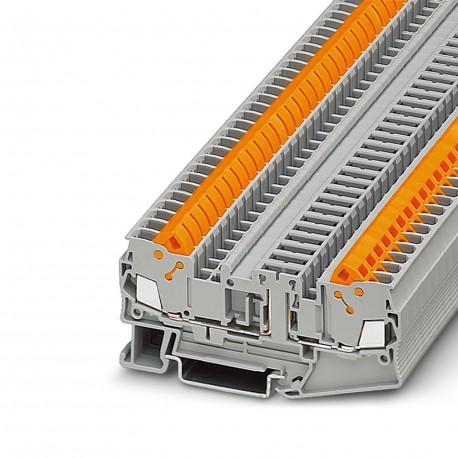

QTC 2,5-TG 3206490 PHOENIX CONTACT Disconnect terminal block
$3.39USD
2986 in stock
Key Specifications
:Machine building
Color:gray (RAL 7042)
Width:6.2 mm
Height:82.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Machine building | |
| Color | gray (RAL 7042) |
| Width | 6.2 mm |
| Height | 82.5 mm |
| Result | Test passed |
| General | Current and voltage are determined by the plug used. |
| Spectrum | Service life test category 1, class B, body mounted |
| ASD level | 0.02g²/Hz |
| Frequency | f1= 5 Hz to f2= 150 Hz |
| Potentials | 1 |
| Pulse shape | Half-sine |
| Revolutions | 135 |
| Acceleration | 0.8g |
| Product type | Disconnect terminal block |
| Mounting type | NS 35/7,5 |
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Number of rows | 1 |
| Rotation speed | 10 rpm |
| Shock duration | 30 ms |
| End cover width | 2.2 mm |
| Nominal current | 20 A |
| Nominal voltage | 400 V |
| Open side panel | Yes |
| Test directions | X-, Y- and Z-axis |
| Article revision | 06 |
| Time of exposure | 30 s |
| Cross section AWG | 20 ... 14 (converted acc. to IEC) |
| Depth on NS 35/15 | 46.8 mm |
| Temperature cycles | 192 |
| Area of application | Railway industry |
| Degree of pollution | 3 |
| Depth on NS 35/7,5 | 39.3 mm |
| Insulating material | PA |
| Rated surge voltage | 6 kV |
| Test force setpoint | 1 N |
| Maximum load current | 20 A (with a 2.5 mm² conductor cross section) |
| Overvoltage category | III |
| Nominal cross section | 2.5 mm² |
| Number of connections | 2 |
| Test voltage setpoint | 67.5 kV |
| Test duration per axis | 5 h |
| DIN rail/fixing support | NS 35 |
| Material wire insulation | PVC / PE |
| Insulating material group | I |
| Conductor cross section rigid | 0.5 mm² ... 2.5 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Conductor cross section/weight | 0.5 mm² / 0.3 kg |
| Number of shocks per direction | 3 |
| Wire diameter incl. insulation | 3.8 mm |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Number of connections per level | 2 |
| Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
| Connection in acc. with standard | IEC 60947-7-1 |
| Permissible humidity (operation) | 20 % ... 90 % |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 20 ... 14 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Static insulating material application in cold | -60 °C |
| Maximum power dissipation for nominal condition | 0.77 W |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Frequency of connections with the same cross section | 100.00 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
Product Description
Interruptible terminal, Current and voltage are determined by the connector used., nominal voltage: 400 V, nominal current: 20 A, 1st floor, connection type: Quick connection, Dimensioning section: 2.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
