QPD N2,5 9-14 BK

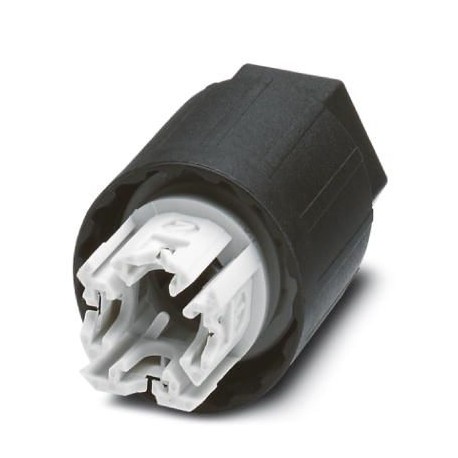

QPD N2,5 9-14 BK 1423994 PHOENIX CONTACT Nut
$0.00USD
3094 in stock
Key Specifications
GTIN:4055626366111
Note:Made to Order (non-returnable)
(Cabel):IP69K
Orderkey:1423994
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626366111 |
| Note | Made to Order (non-returnable) |
| (Cabel) | IP69K |
| Orderkey | 1423994 |
| Packing unit | 1 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| (Key Commercial Data) | IDC connection |
| Position marking (General) | 1, 2, 3, 4 |
| Type (Key Commercial Data) | QPD 4x2,5 |
| Color (Key Commercial Data) | black |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Degree of protection (Cabel) | IP66 |
| External cable diameter (General) | 9 mm ... 14 mm |
| Locking type (Key Commercial Data) | Screw locking |
| Rated current (Ambient conditions) | 20 A |
| Wire insulation material (General) | PVC/PE/TPE/rubber |
| Weight per Piece (excluding packing) | 22.220 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Ambient temperature (operation) (Cabel) | -40 °C ... 100 °C |
| Connection method (Key Commercial Data) | QUICKON connection |
| Nominal current IN (Ambient conditions) | 20 A |
| Number of positions (Key Commercial Data) | 4 |
| Rated voltage (II/2) (Ambient conditions) | 1000 V |
| Rated voltage (III/2) (Ambient conditions) | 1000 V |
| Rated voltage (III/3) (Ambient conditions) | 690 V |
| Number of connections (Key Commercial Data) | 10 |
| Temperature when conductor connected (Cabel) | -5 °C ... 50 °C |
| Wire diameter including insulation (General) | 2 mm ... 3.6 mm |
| Note number of positions (Key Commercial Data) | 4 |
| Ambient temperature (storage/transport) (Cabel) | -40 °C ... 80 °C |
| Rated surge voltage (II/2) (Ambient conditions) | 8 kV |
| Degree of pollution (Mechanical characteristics) | 3 |
| Insulating material (Mechanical characteristics) | PA |
| Rated surge voltage (III/2) (Ambient conditions) | 8 kV |
| Rated surge voltage (III/3) (Ambient conditions) | 8 kV |
| Overvoltage category (Mechanical characteristics) | III |
| Tightening torque, union nut (Key Commercial Data) | 10 Nm |
| QUICKON connectability (Electrical characteristics) | max. 10 |
| Category of shock impact (Electrical characteristics) | IK07 |
| Contact carrier material (Mechanical characteristics) | PA |
| Conductor cross section AWG max. (Key Commercial Data) | 14 |
| Conductor cross section AWG min. (Key Commercial Data) | 16 |
| Flammability rating according to UL 94 (Material data) | V0 |
| Conductor cross section solid max. (Key Commercial Data) | 2.5 mm² |
| Conductor cross section solid min. (Key Commercial Data) | 1 mm² |
| Conductor cross section flexible max. (Key Commercial Data) | 2.5 mm² |
| Conductor cross section flexible min. (Key Commercial Data) | 1 mm² |
| Flammability rating according to UL 94 (Mechanical characteristics) | V0 |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter (General) | VDE 0295 class 1 to 6/min. 0.15 mm |
Product Description
Nut, QUICKON connection, 1 mm² ... 2.5 mm², 690 V, 20 A, black, outer diameter of cable: 9 mm ... 14 mm
