QPD C 2PE1,5 2X4-9 BK

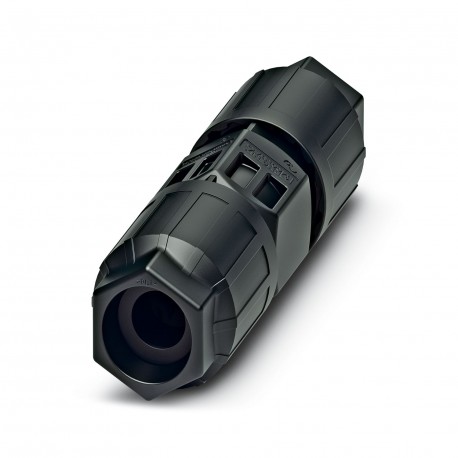

QPD C 2PE1,5 2X4-9 BK 1414700 PHOENIX CONTACT Conductor connectors
$0.00USD
4425 in stock
Key Specifications
GTIN:4055626031620
(Cabel):IP69K
Orderkey:1414700
Catalog page:Page 469 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626031620 |
| (Cabel) | IP69K |
| Orderkey | 1414700 |
| Catalog page | Page 469 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| (Key Commercial Data) | IDC connection |
| Position marking (General) | 1, 2, PE |
| Type (Key Commercial Data) | QPD 3x1,5 |
| Color (Key Commercial Data) | black |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Degree of protection (Cabel) | IP66 |
| Halogen-free (Material data) | yes |
| External cable diameter (General) | 5 mm ... 9.5 mm |
| Locking type (Key Commercial Data) | Screw locking |
| Rated current (Ambient conditions) | 17.5 A |
| Wire insulation material (General) | PVC/PE/TPE/rubber |
| Weight per Piece (excluding packing) | 37.000 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Ambient temperature (operation) (Cabel) | -40 °C ... 100 °C |
| Connection method (Key Commercial Data) | QUICKON connection |
| Nominal current IN (Ambient conditions) | 17.5 A |
| Number of positions (Key Commercial Data) | 3 |
| Rated voltage (II/2) (Ambient conditions) | 1000 V |
| Rated voltage (III/2) (Ambient conditions) | 1000 V |
| Rated voltage (III/3) (Ambient conditions) | 690 V |
| Temperature when conductor connected (Cabel) | -5 °C ... 50 °C |
| Wire diameter including insulation (General) | 1.6 mm ... 3 mm |
| Contact material (Mechanical characteristics) | Cu |
| Note number of positions (Key Commercial Data) | 2+PE |
| Ambient temperature (storage/transport) (Cabel) | -40 °C ... 100 °C |
| Rated surge voltage (II/2) (Ambient conditions) | 8 kV |
| Degree of pollution (Mechanical characteristics) | 3 |
| Insulating material (Mechanical characteristics) | PA |
| Rated surge voltage (III/2) (Ambient conditions) | 8 kV |
| Rated surge voltage (III/3) (Ambient conditions) | 6 kV |
| Overvoltage category (Mechanical characteristics) | III |
| Tightening torque, union nut (Key Commercial Data) | 8 Nm |
| QUICKON connectability (Electrical characteristics) | max. 10 |
| Category of shock impact (Electrical characteristics) | IK07 |
| Contact carrier material (Mechanical characteristics) | PA |
| Contact surface material (Mechanical characteristics) | silver-plated |
| Conductor cross section AWG max. (Key Commercial Data) | 16 |
| Conductor cross section AWG min. (Key Commercial Data) | 20 |
| Flammability rating according to UL 94 (Material data) | V0 |
| Conductor cross section solid max. (Key Commercial Data) | 1.5 mm² |
| Conductor cross section solid min. (Key Commercial Data) | 0.5 mm² |
| Insertion/withdrawal cycles (Electrical characteristics) | > 10 (QUICKON connections max. 10) |
| Conductor cross section flexible max. (Key Commercial Data) | 1.5 mm² |
| Conductor cross section flexible min. (Key Commercial Data) | 0.5 mm² |
| Flammability rating according to UL 94 (Mechanical characteristics) | V0 |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter (General) | VDE 0295 class 1 to 6/min. 0.15 mm |
Product Description
Cable splicers, QUICKON connection, number of poles: 2+PE, 0.5 mm² ... 1.5 mm², 690 V, 17.5 A, black, with two QUICKON nuts, outer diameter of the cable: 5 mm ... 9.5 mm, QUICKON Quick Connect
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
