QP-320D

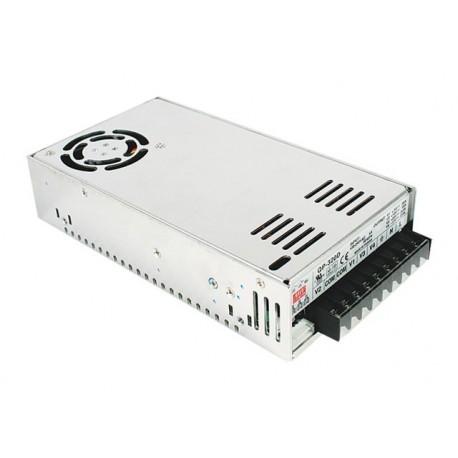

QP-320D MEANWELL AC-DC Quad output enclosed power supply, Output 5VDC / 20A +12VDC / 10A +24VDC / 5A -12VDC ..
$115.19USD
117 in stock
Key Specifications
Fan:Yes
Name:QP-320D
Alarms:Network failure
Format:Box
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Fan | Yes |
| Name | QP-320D |
| Alarms | Network failure |
| Format | Box |
| Series | QP-320 |
| Output 1 | -12 |
| Output 2 | +5 |
| Output 3 | +12 |
| Output 4 | +24 |
| Approvals | CE, UL |
| Power (W) | 316,00 |
| Subformato | Grid |
| Width (mm) | 115.00 |
| Height (mm) | 50.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Peak Power (W) | Three hundred sixteen |
| Input connector | Screw-Type |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 215.00 |
| Long Description | Switching Power supply with 4 outputs.Format in Box Grid.Range universal Input full90-264vac47-63Hz.Outputs:-12vdc:Minimum intensity of output0.2 To.Maximum output currentTwoAmps.+5vdc:Minimum intensity of output2.5 To.Maximum output currentTwentyAmps.+12vdc:Minimum intensity of output0A.Maximum output currentTenAmps.+24vdc:Minimum intensity of output0.2 To.Maximum output currentFiveAmps.Peak output20 Tomperios < 1ms.Power:316W.Factor Corrector, Power>0,95.Efficiency typical:83%.Working temperature: from-10ºCup+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Function of sensing to compensate the voltage drop in the cables.Alarm for power failure AC-Fail.Dimensions (Length x Width x Height) [mm]:215 x 115 x 50.3 years warranty.Manufacturer: MEAN WELLThe series QP-320 are power supplies for industrial applications or information technology in a compact size and high reliability and with correction factor of power active.These sources need to have always the minimum load shown for each output. If we don't have that minimum load, the output will be unstable or the source may not come to light. You can connect a load resistance to ensure that you always have the minimum load.Check that all the outputs do not exceed the maximum output of the power supply. |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
| You Need To Load Minimum | Yes |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Switching Power supply with 4 outputs.
