QC 1,5/ 9-ST CP3

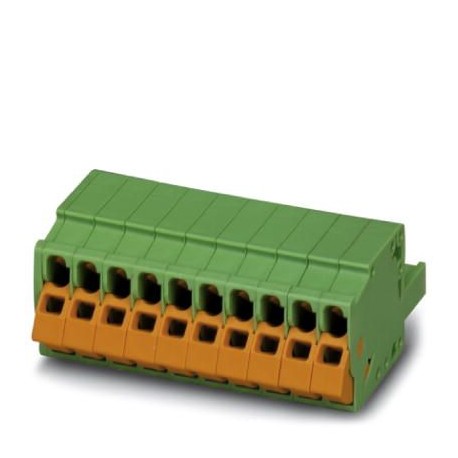

QC 1,5/ 9-ST CP3 1713337 PHOENIX CONTACT Plug
$0.00USD
3689 in stock
Key Specifications
GTIN:4055626320793
Orderkey:1713337
Packing unit:1
Custom tariff number:85366990
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626320793 |
| Orderkey | 1713337 |
| Packing unit | 1 |
| Custom tariff number | 85366990 |
| Pitch (Key Commercial Data) | 5 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Connection method (Dimensions) | Displacement connection |
| Range of articles (Dimensions) | QC 1,5/..-ST |
| Nominal current IN (Dimensions) | 12 A |
| Number of positions (Dimensions) | 9 |
| Dimension a (Key Commercial Data) | 40 mm |
| Nominal cross section (Dimensions) | 1.5 mm² |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | I |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
Connector for printed circuit board, nominal section: 1.5 mm², color: green, nominal current: 12 A, dimensioning voltage (III/2): 630 V, contact surface: Tin, contact type: Connection female, Number o
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
