In Stock Hot Product
Q50IH/00-0A

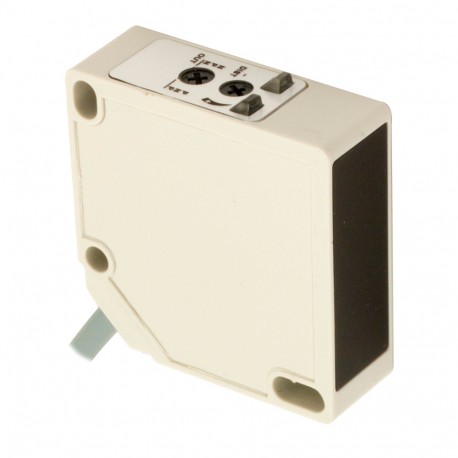

Q50IH/00-0A MICRO DETECTORS Photoelectric sensor Emitter 20m cable 2m
$0.00USD
4867 in stock
Key Specifications
Weight:200g
Emission:Infrared
Material:PC/ABS
Dimensions:50X50mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 200g |
| Emission | Infrared |
| Material | PC/ABS |
| Dimensions | 50X50mm |
| Connections | 2m PVC cable |
| Optic position | Axial |
| Output Function | NO+NC selectable |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10-30Vdc ( ripple included) |
| Function Principle | Through beam |
| Max ripple content | 10% |
| Active Head Material | PMMA |
| Degree of protection | IP67 |
| Supplied Accessories | Mounting bracket included |
| Operating temperature | - 20°C…+ 60°C ( UL omologation 0°C…60°C) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-59 |
| No-Load supply current | ≤ 50mA |
| Sensitivity adjustment | Single-turn potentiometer |
| Nominal sensing distance | 20m |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
Product Description
Q50IH/00-0A Photoelectric sensor Emitter 20m cable 2m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
