Q50ID/B0-0A

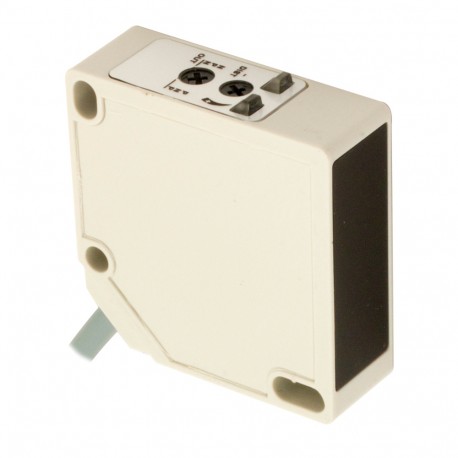

Q50ID/B0-0A MICRO DETECTORS Photoelectric sensor Receiver 20m NPN/PNP NO+NC cable 2m
$0.00USD
4589 in stock
Key Specifications
Weight:200g
Material:PC/ABS
Dimensions:50X50mm
Connections:2m PVC cable
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 200g |
| Material | PC/ABS |
| Dimensions | 50X50mm |
| Connections | 2m PVC cable |
| Output type | PNP or NPN |
| Load current | ≤ 200mA |
| Optic position | Axial |
| Output Function | NO+NC complementary |
| EMC compatibility | EN 60947-5-2 |
| Function Principle | Through beam |
| Max ripple content | 10% |
| Output voltage drop | ≤ 2,5 Vdc @ 200mA |
| Switching frequency | 500Hz |
| Active Head Material | PMMA |
| Degree of protection | IP67 |
| Supplied Accessories | Mounting bracket included |
| Operating temperature | - 20°C…+ 60°C ( UL omologation 0°C…60°C) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-57 |
| No-Load supply current | ≤ 40mA |
| Sensitivity adjustment | Single-turn potentiometer |
| Nominal sensing distance | 20m |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Time delay before availability | ≤ 1ms |
Product Description
Q50ID/B0-0A Photoelectric sensor Receiver20m NPN/PNP NO+NC cable 2m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
