Q2V-A4012-AAA

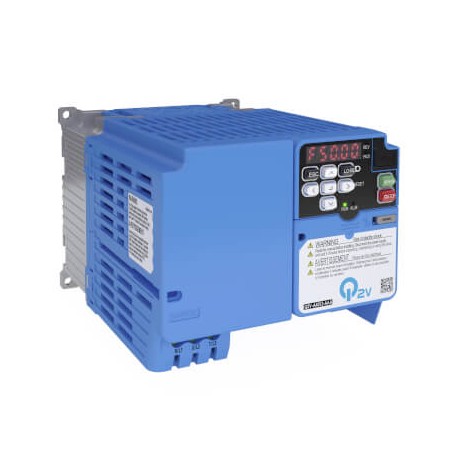

Q2V-A4012-AAA AA022749C 688456 OMRON Q2V drive, 400 V, ND: 11.9 A/5.5 kW, HD: 9.2 A/4.0 kW, IP20, EMC filter..
$0.00USD
3644 in stock
Key Specifications
():SI-S3
Depth:193 mm
Width:140 mm
Height:128 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | SI-S3 |
| Depth | 193 mm |
| Width | 140 mm |
| Height | 128 mm |
| Weight | 2600 g |
| Finless type | |
| Built in EMC filter | |
| Drive supply voltage | 400 V three phase |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor, Synchronous reluctance motor |
| Regenerative solutions | As inverter option |
| Communication option(s) | Bluetooth, CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave |
| Inverter control method | Open loop V/f, Open loop vector |
| Degree of protection (IP) | IP20 |
| Max. motor output at constant torque (HD) | 4.0 kW |
| Max. motor output at variable torque (ND) | 5.5 kW |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
