In Stock Hot Product
Q2V-A2012-BAA

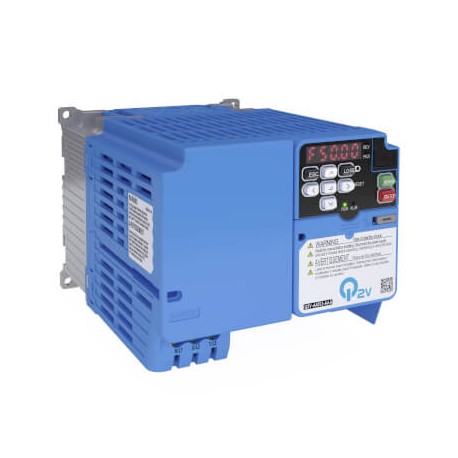

Q2V-A2012-BAA AA058325G 702672 OMRON Q2V 200V INVERTER, ND: 12.2 A / 3 kW, HD: 11 A / 2.2 kW, without integr..
$0.00USD
3405 in stock
Key Specifications
():SI-S3
Depth:137.5 mm
Width:108 mm
Height:128 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | SI-S3 |
| Depth | 137.5 mm |
| Width | 108 mm |
| Height | 128 mm |
| Weight | 1500 g |
| Finless type | |
| Built in EMC filter | |
| Drive control method | Open loop V/f, Open loop vector |
| Drive supply voltage | 230 V three phase |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor, Synchronous reluctance motor |
| Regenerative solutions | As inverter option |
| Communication option(s) | Bluetooth, CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave |
| Degree of protection (IP) | IP20 |
| Max. motor output at constant torque (HD) | 2.2 kW |
| Max. motor output at variable torque (ND) | 3.0 kW |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
