In Stock Hot Product
Q2A-A2006-AAA

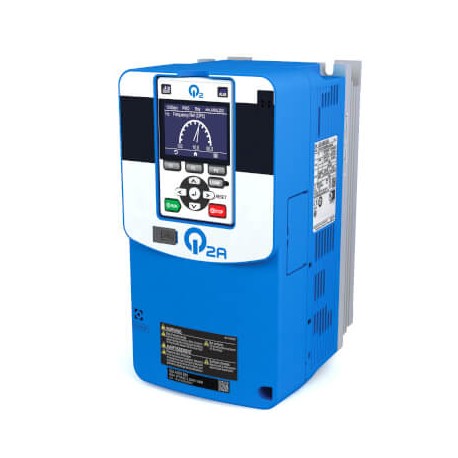

Q2A-A2006-AAA AA054052C 684657 OMRON Q2A drive, 200 V, ND: 6 A/1.1 kW, HD: 5 A/0.75 kW, IP20, max. output fr..
$0.00USD
4198 in stock
Key Specifications
():SI-S3
Depth:176 mm
Width:312 mm
Height:260 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | SI-S3 |
| Depth | 176 mm |
| Width | 312 mm |
| Height | 260 mm |
| Finless type | |
| Built in EMC filter | |
| Drive supply voltage | 230 V three phase |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor, Synchronous reluctance motor |
| Regenerative solutions | As inverter option |
| Communication option(s) | Bluetooth, CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave |
| Inverter control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Degree of protection (IP) | IP20 |
| Max. motor output at constant torque (HD) | 0.75 kW |
| Max. motor output at variable torque (ND) | 1.1 kW |
Product Description
Inverter Q2A, 200 V, ND: 6 A / 1.1 kW, HD: 5 A / 0.75 kW, IP20, max. output freq. 590 Hz
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
