Q25LPV

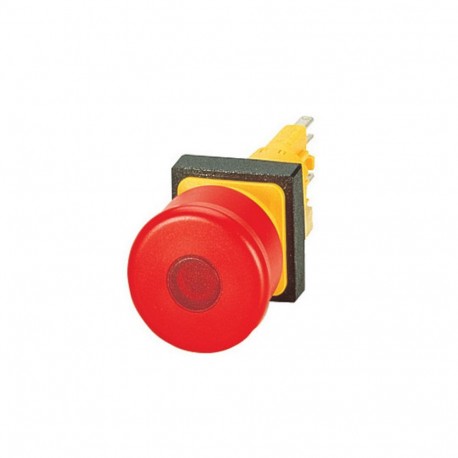

Q25LPV 072371 Y7-72371 EATON ELECTRIC Emergency-stop pushbutton, illuminated
$0.00USD
3900 in stock
Key Specifications
Feature Name:Feature Value
Diameter cap (EF001423):28 mm
Colour button (EF000190):Red
Hole diameter (EF000079):16 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Diameter cap (EF001423) | 28 mm |
| Colour button (EF000190) | Red |
| Hole diameter (EF000079) | 16 mm |
| Spring-return (EF001407) | Yes |
| Width opening (EF004565) | 0 mm |
| With lighting (EF003829) | No |
| Height opening (EF004778) | 0 mm |
| Type of button (EF001546) | High |
| With front ring (EF006014) | No |
| Unlocking method (EF001403) | Pull-release |
| Colour front ring (EF002429) | Other |
| Material front ring (EF005972) | Other |
| Supply voltage lamp (EF006522) | 0 V |
| Suitable for lighting (EF001142) | Yes |
| Construction type lens (EF006253) | Round |
| Degree of protection (IP) (EF005474) | IP65 |
| Degree of protection (NEMA) (EF011959) | 1 |
| Suitable for emergency stop (EF001433) | Yes |
| Switching function latching (EF007447) | Yes |
Product Description
Emergency Stop Button 16 mm 25x25 mm Unlocking by
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
