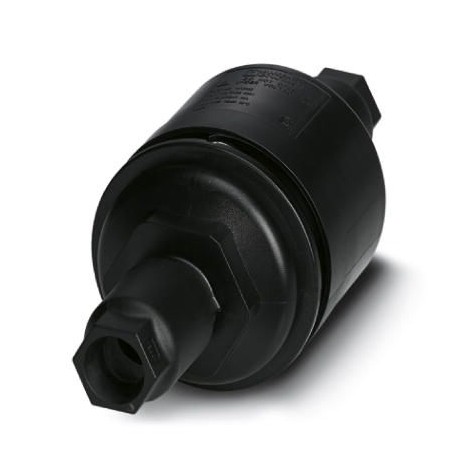

PV-MI-CABLE SPLICE 3P
PV-MI-CABLE SPLICE 3P 1812403 PHOENIX CONTACT Housing
$0.00USD
4601 in stock
Key Specifications
GTIN:4046356738682
Note:Made to Order (non-returnable)
Orderkey:1812403
Catalog page:Page 72 (NTK-2014)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356738682 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1812403 |
| Catalog page | Page 72 (NTK-2014) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| (Connection data) | No hazardous substances above threshold values |
| Custom tariff number | 85366990 |
| Torque (General data) | 2.5 Nm ... 3 Nm (Conductors) |
| Color (Key Commercial Data) | black |
| China RoHS (Connection data) | Environmentally friendly use period: unlimited = EFUP-e |
| Rated current (General data) | 30 A |
| Stripping length (General data) | 12 mm |
| Weight per Piece (excluding packing) | 220.000 g |
| Wrench size, union nut (General data) | 22.00 mm |
| Number of positions (Key Commercial Data) | 3 |
| Conductor cross section AWG max. (General data) | 4 |
| Conductor cross section AWG min. (General data) | 16 |
| Conductor cross section solid max. (General data) | 25 mm² |
| Conductor cross section solid min. (General data) | 1.5 mm² |
| Insertion/withdrawal cycles (Key Commercial Data) | 10 (with same cable diameter) |
| Conductor cross section flexible max. (General data) | 25 mm² |
| Conductor cross section flexible min. (General data) | 1.5 mm² |
