PV-FT-C3M-C-6-VPE250

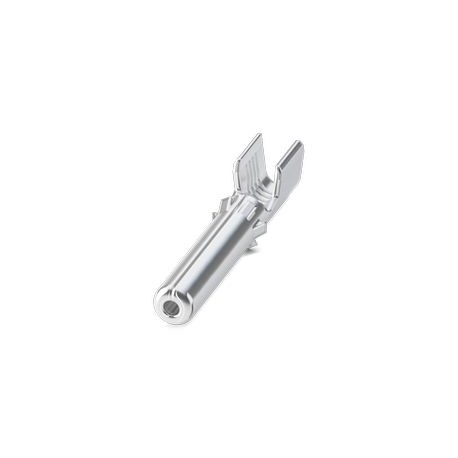

PV-FT-C3M-C-6-VPE250 1196771 PHOENIX CONTACT Crimped contact, Family of articles: SUNCLIX, number of poles: ..
$0.75USD
13379 in stock
Key Specifications
:• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
Width:5.5 mm
Height:7.8 mm
Length:27.6 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. | |
| Width | 5.5 mm |
| Height | 7.8 mm |
| Length | 27.6 mm |
| Safety note | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| Product type | Panel feed-through |
| Product family | Sunclix |
| Insertion force | < 45 N ±10 N |
| Contact material | Cu |
| Connection method | Crimp |
| Contact resistance | < 0.3 mΩ (Crimp to crimp) |
| Number of positions | 1 |
| Contact surface material | Ag |
| Rated current (6.0 mm²) | 40 A |
| Single wire, cross section | 6 mm² 6 mm² |
| Insertion/withdrawal cycles | 100 |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Stripping length of the individual wire | 9 mm -1 mm |
Product Description
Crimp Contact, Item Family: Sunclix, Pole Number: 1, Min. Conductor Section: 6 mm², Max. Conductor Section: 6 mm², Connection Type: Crimp, Contact Connection Type: Male
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
