PV-3A10-T

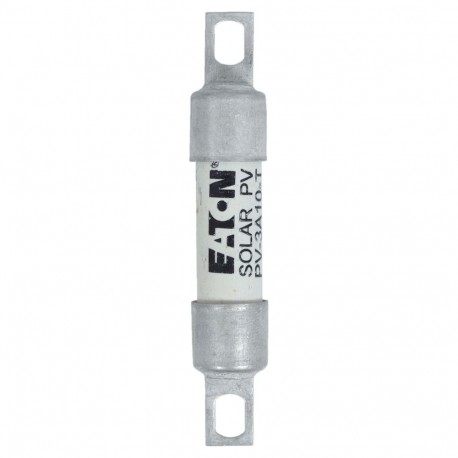

PV-3A10-T EATON ELECTRIC cartridge fuse, ultra fast, 3 a, DC 1000 V IEC60269-6 type a, 10 x 59 mm, gPV, UL P..
$0.00USD
4153 in stock
Key Specifications
Feature Name:Feature Value
Size (EF000088):10x38 mm
Model (EF000010):Ceramic fuse
Voltage type (EF000187):DC
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Size (EF000088) | 10x38 mm |
| Model (EF000010) | Ceramic fuse |
| Voltage type (EF000187) | DC |
| Rated current (EF000227) | 3 A |
| Release characteristic (EF000889) | Other |
| Power loss at rated current (EF012389) | 1.3 W |
| Type of fuse status indicator (EF004473) | Other |
| Utilization category according to IEC 60269 (EF002572) | gPV (photovoltaic protection) |
Product Description
Eaton Bussmann series photovoltaic fuses, 1000 Vdc, 3A, 50 kAIC, Non Indicating, IEC 60269-6 type A, Class gPV, Time constant: 1-3 ms, Bolt
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
