PTV 2,5-TWIN BU

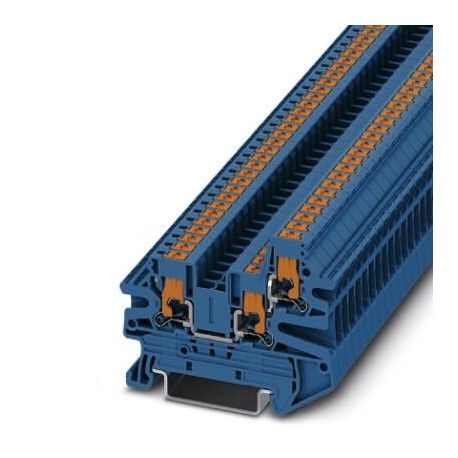

PTV 2,5-TWIN BU 1078971 PHOENIX CONTACT Feed-through terminal block, nom. voltage: 800 V, nominal current: 2..
$0.00USD
4830 in stock
Key Specifications
GTIN:4055626797274
Orderkey:1078971
(Drawings):Process industry
Catalog page:Page 88 (C-1-2019)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626797274 |
| Orderkey | 1078971 |
| (Drawings) | Process industry |
| Catalog page | Page 88 (C-1-2019) |
| Packing unit | 1 pc |
| Width (General) | 5.2 mm |
| Color (Drawings) | blue |
| Height (General) | 45.7 mm |
| Length (General) | 60 mm |
| UNSPSC 11 (ETIM) | 39121410 |
| Country of origin | CN (China) |
| ETIM 2.0 (eCl@ss) | EC000897 |
| ETIM 3.0 (eCl@ss) | EC000897 |
| ETIM 4.0 (eCl@ss) | EC000897 |
| ETIM 5.0 (eCl@ss) | EC000897 |
| ETIM 6.0 (eCl@ss) | EC000897 |
| ETIM 7.0 (eCl@ss) | EC000897 |
| UNSPSC 13.2 (ETIM) | 39121410 |
| UNSPSC 18.0 (ETIM) | 39121410 |
| UNSPSC 19.0 (ETIM) | 39121410 |
| UNSPSC 20.0 (ETIM) | 39121410 |
| UNSPSC 21.0 (ETIM) | 39121410 |
| UNSPSC 6.01 (ETIM) | 30211811 |
| UNSPSC 12.01 (ETIM) | 39121410 |
| Custom tariff number | 85369010 |
| UNSPSC 7.0901 (ETIM) | 39121410 |
| Potentials (Drawings) | 1 |
| Minimum order quantity | 50 pc |
| Connection (Dimensions) | 1 level |
| End cover width (General) | 2.2 mm |
| Height NS 35/15 (General) | 54.4 mm |
| Height NS 35/7,5 (General) | 46.9 mm |
| Open side panel (Drawings) | Yes |
| Number of levels (Drawings) | 1 |
| eCl@ss 4.0 (Classifications) | 27141121 |
| eCl@ss 4.1 (Classifications) | 27141121 |
| eCl@ss 5.0 (Classifications) | 27141120 |
| eCl@ss 5.1 (Classifications) | 27141100 |
| eCl@ss 6.0 (Classifications) | 27141100 |
| eCl@ss 7.0 (Classifications) | 27141120 |
| eCl@ss 8.0 (Classifications) | 27141120 |
| eCl@ss 9.0 (Classifications) | 27141120 |
| Nominal current IN (Drawings) | 24 A (with 2.5 mm² conductor connection cross section) |
| Nominal voltage UN (Drawings) | 800 V |
| Stripping length (Dimensions) | 8 mm ... 10 mm |
| Area of application (Drawings) | Railway industry |
| Connection method (Dimensions) | Push-in connection |
| Degree of pollution (Drawings) | 3 |
| Insulating material (Drawings) | PA |
| Rated surge voltage (Drawings) | 8 kV |
| Maximum load current (Drawings) | 28 A (with 4 mm² conductor cross section) |
| Overvoltage category (Drawings) | III |
| Nominal cross section (Drawings) | 2.5 mm² |
| Number of connections (Drawings) | 3 |
| Insulating material group (Drawings) | I |
| Weight per Piece (excluding packing) | 8.400 g |
| Internal cylindrical gage (Dimensions) | A3 |
| Conductor cross section AWG max. (Dimensions) | 12 |
| Conductor cross section AWG min. (Dimensions) | 26 |
| Connection in acc. with standard (Dimensions) | IEC 60947-7-1 |
| Conductor cross section solid max. (Dimensions) | 4 mm² |
| Conductor cross section solid min. (Dimensions) | 0.14 mm² |
| Flammability rating according to UL 94 (Drawings) | V0 |
| Conductor cross section flexible max. (Dimensions) | 2.5 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.14 mm² |
| Connection in acc. with standard (Connection data) | IEC 60947-7-1 |
| Max. AWG conductor cross section, flexible (Dimensions) | 14 |
| Min. AWG conductor cross section, flexible (Dimensions) | 26 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 2.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.14 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.14 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 1 mm² |
Product Description
Feed-through terminal, nominal voltage: 800 V, nominal current: 24 A, number of connections: 3, connection type: Push-in connection, 1st floor, Dimensioning cross-section: 2.5 mm², cross-section: 0.14
