PTTB 4 RD

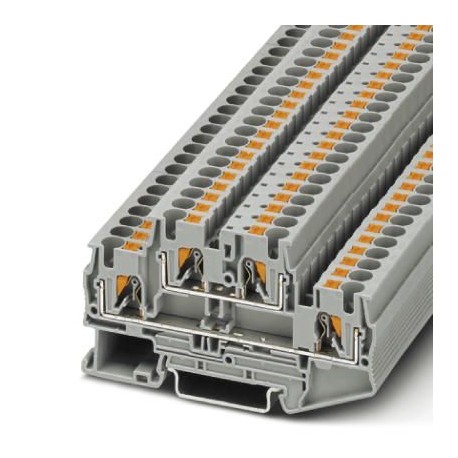

PTTB 4 RD 3211791 PHOENIX CONTACT Double-level terminal block
$0.00USD
3899 in stock
Key Specifications
GTIN:4055626461588
Note:Made to Order (non-returnable)
Orderkey:3211791
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626461588 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3211791 |
| Packing unit | 50 pc |
| Width (General) | 6.2 mm |
| Length (General) | 83.5 mm |
| Country of origin | CN (China) |
| Custom tariff number | 85369010 |
| (Key Commercial Data) | Process industry |
| Minimum order quantity | 50 pc |
| Height NS 35/15 (General) | 55 mm |
| Height NS 35/7,5 (General) | 47.5 mm |
| Color (Key Commercial Data) | red |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Stripping length (Dimensions) | 10 mm ... 12 mm |
| Connection method (Dimensions) | Push-in connection |
| Weight per Piece (excluding packing) | 16.600 g |
| Open side panel (Key Commercial Data) | Yes |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Internal cylindrical gage (Dimensions) | A4 |
| Number of levels (Key Commercial Data) | 2 |
| Nominal current IN (Key Commercial Data) | 28 A (with 4 mm² conductor cross section) |
| Nominal voltage UN (Key Commercial Data) | 500 V |
| Area of application (Key Commercial Data) | Machine building |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Rated surge voltage (Key Commercial Data) | 6 kV |
| Maximum load current (Key Commercial Data) | 32 A (with 6 mm² conductor cross section) |
| Overvoltage category (Key Commercial Data) | III |
| Nominal cross section (Key Commercial Data) | 4 mm² |
| Number of connections (Key Commercial Data) | 4 |
| Conductor cross section AWG max. (Dimensions) | 10 |
| Conductor cross section AWG min. (Dimensions) | 24 |
| Conductor cross section solid max. (Dimensions) | 6 mm² |
| Conductor cross section solid min. (Dimensions) | 0.2 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 4 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.2 mm² |
| Connection in acc. with standard (Connection data) | IEC 60947-7-1 |
| Connection in acc. with standard (Key Commercial Data) | IEC 60947-7-1 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Maximum power dissipation for nominal condition (Key Commercial Data) | 1.02 W (the value is multiplied when connecting multiple levels) |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 4 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 4 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.25 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 1 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 0.5 mm² |
Product Description
Double-level terminal block, nominal voltage: 500 V, nominal current: 28 A, connection type: Push-in connection, 1st and 2nd floor, Dimensioning cross-section: 4 mm², cross-section: 0.2 mm² - 6 mm², m
