PTRV 4 BU/RD

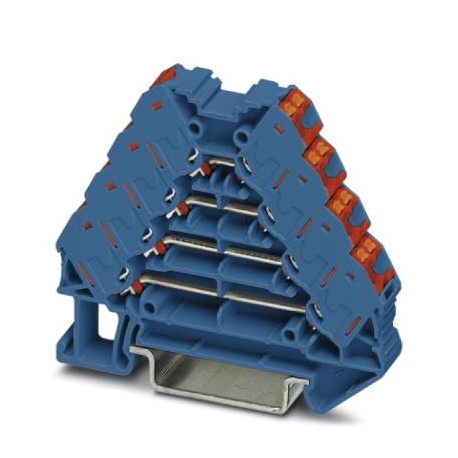

PTRV 4 BU/RD 3270120 PHOENIX CONTACT Marshalling panel
$0.00USD
3521 in stock
Key Specifications
GTIN:4055626046662
Note:Made to Order (non-returnable)
Orderkey:3270120
Catalog page:Page 44 (C-1-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626046662 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3270120 |
| Catalog page | Page 44 (C-1-2017) |
| Packing unit | 10 pc |
| Width (General) | 8.3 mm |
| Length (General) | 64 mm |
| Country of origin | PL (Poland) |
| Custom tariff number | 85369010 |
| Minimum order quantity | 10 pc |
| Height NS 35/15 (General) | 63 mm |
| Height NS 35/7,5 (General) | 55.5 mm |
| Color (Key Commercial Data) | blue |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Stripping length (Dimensions) | 8 mm ... 10 mm |
| Connection method (Dimensions) | Push-in connection |
| Potentials (Key Commercial Data) | 4 |
| Weight per Piece (excluding packing) | 17.700 g |
| Open side panel (Key Commercial Data) | Yes |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Number of levels (Key Commercial Data) | 4 |
| Nominal current IN (Key Commercial Data) | 10 A |
| Nominal voltage UN (Key Commercial Data) | 250 V |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 2 |
| Rated surge voltage (Key Commercial Data) | 6 kV |
| Maximum load current (Key Commercial Data) | 10 A (with 1.5 mm² conductor cross section) |
| Overvoltage category (Key Commercial Data) | III |
| Nominal cross section (Key Commercial Data) | 1.5 mm² |
| Number of connections (Key Commercial Data) | 16 |
| Conductor cross section AWG max. (Dimensions) | 14 |
| Conductor cross section AWG min. (Dimensions) | 26 |
| Connection in acc. with standard (Dimensions) | IEC 60947-7-1 |
| Conductor cross section solid max. (Dimensions) | 2.5 mm² |
| Conductor cross section solid min. (Dimensions) | 0.14 mm² |
| Insulating material group (Key Commercial Data) | I |
| Color of connection elements (Key Commercial Data) | red |
| Conductor cross section flexible max. (Dimensions) | 1.5 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.14 mm² |
| Connection in acc. with standard (Connection data) | IEC 60947-7-1 |
| NF F16-101, NF F10-102 Class F (Key Commercial Data) | 2 |
| NF F16-101, NF F10-102 Class I (Key Commercial Data) | 2 |
| Oxygen index (DIN EN ISO 4589-2) (Key Commercial Data) | >32 % |
| Max. AWG conductor cross section, flexible (Dimensions) | 14 |
| Min. AWG conductor cross section, flexible (Dimensions) | 26 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flame test method (DIN EN 60695-11-10) (Key Commercial Data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) (Key Commercial Data) | passed |
| Surface flammability NFPA 130 (ASTM E 162) (Key Commercial Data) | passed |
| Static insulating material application in cold (Key Commercial Data) | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) (Key Commercial Data) | Test passed |
| Maximum power dissipation for nominal condition (Key Commercial Data) | 0.56 W (the value is multiplied when connecting multiple levels) |
| Calorimetric heat release NFPA 130 (ASTM E 1354) (Key Commercial Data) | 28 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Key Commercial Data) | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) (Key Commercial Data) | passed |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.14 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) (Key Commercial Data) | 130 °C |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.14 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Key Commercial Data) | 130 °C |
Product Description
Switching distributor, nominal voltage: 250 V, nominal current: 10 A, connection type: Push-in connection, 1., 2., 3. and 4th floor, Sizing section: 1.5 mm², cross-section: 0.14 mm² - 2.5 mm², mountin
