In Stock Hot Product
PTFIX-NS35 LQ

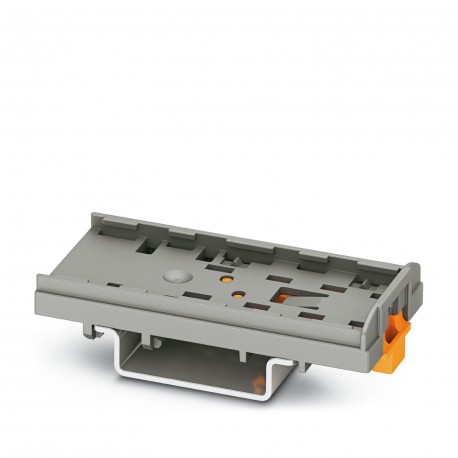

PTFIX-NS35 LQ 1092937 PHOENIX CONTACT Adapter for rail, length: to the tune of 58.1 mm, width: 28.6 mm, heig..
$0.00USD
4210 in stock
Key Specifications
:NS 35/15
Color:gray (RAL 7042)
Depth:11 mm
Width:28.6 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| NS 35/15 | |
| Color | gray (RAL 7042) |
| Depth | 11 mm |
| Width | 28.6 mm |
| Height | 58.1 mm |
| Material | PA |
| Product type | Mounting material |
| Mounting type | NS 35/7,5 |
| Article revision | 00 |
| Depth on NS 35/15 | 22.5 mm |
| Depth on NS 35/7,5 | 15 mm |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Product Description
Rail adapter, Rail adapters, larger packaging unit, length: 58.1 mm, width: 28.6 mm, height: 11 mm, color: gray, mounting class: NS 35/7.5
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
