PTFIX 2X4 BN

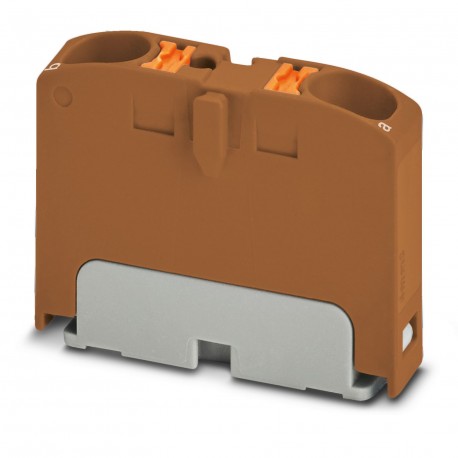

PTFIX 2X4 BN 1028365 PHOENIX CONTACT Block for distribution, Terminal base, rated voltage: 450 V, nominal cu..
$0.00USD
4614 in stock
Key Specifications
:Depending on the application case and mechanical load, other arrangements of the mounting accessory can also be chosen.
Note:The IEC 60947-7-1 standard applies for the use of mounting accessories.
Color:brown (RAL 8028)
Depth:21.7 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Depending on the application case and mechanical load, other arrangements of the mounting accessory can also be chosen. | |
| Note | The IEC 60947-7-1 standard applies for the use of mounting accessories. |
| Color | brown (RAL 8028) |
| Depth | 21.7 mm |
| Width | 6.2 mm |
| Height | 28.6 mm |
| Result | Test passed |
| Spectrum | Service life test category 2, bogie-mounted |
| ASD level | 6.12 (m/s²)²/Hz |
| Frequency | f1= 5 Hz to f2= 250 Hz |
| Pulse shape | Half-sine |
| Revolutions | 135 |
| Acceleration | 3.12g |
| Product type | Distributor terminal block |
| Mounting type | for snapping onto a DIN rail adapter |
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Number of rows | 1 |
| Rotation speed | 10 rpm |
| Shock duration | 18 ms |
| Nominal current | 32 A |
| Nominal voltage | 450 V (in accordance with IEC 60998-2-2) |
| Open side panel | No |
| Test directions | X-, Y- and Z-axis |
| Article revision | 02 |
| Stripping length | 10 mm ... 12 mm |
| Time of exposure | 30 s |
| Cross section AWG | 24 ... 10 (converted acc. to IEC) |
| Temperature cycles | 192 |
| Insulating material | PA |
| Rated surge voltage | 8 kV |
| Maximum load current | 38 A (bei 6 mm² Leiterquerschnitt starr) |
| Overvoltage category | III |
| Maximum total current | The maximum load current of the individual terminal point must not be exceeded. |
| Nominal cross section | 4 mm² |
| Number of connections | 2 |
| Test voltage setpoint | 9.8 kV |
| Test duration per axis | 5 h |
| Rated cross section AWG | 12 |
| Insulating material group | I |
| Internal cylindrical gage | A4 |
| Conductor cross section rigid | 0.2 mm² ... 6 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Conductor cross section/weight | 0.2 mm² / 0.2 kg |
| Number of shocks per direction | 3 |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Number of connections per level | 2 |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Connection in acc. with standard | IEC 60998-2-2 |
| Permissible humidity (operation) | 20 % ... 90 % |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Short-time withstand current 4 mm² | 0.48 kA |
| Short-time withstand current 6 mm² | 0.72 kA |
| Conductor cross section, rigid [AWG] | 20 ... 10 (converted acc. to IEC) |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Conductor cross section, flexible [AWG] | 24 ... 12 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Static insulating material application in cold | -60 °C |
| Maximum power dissipation for nominal condition | 1.02 W |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.2 mm² ... 4 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.2 mm² ... 4 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1 mm² |
Product Description
Distribution block, Base terminal, rated voltage: 800 V, rated current: 32 A, number of connections: 2, connection type: Push-in connection, Sizing cross-section: 4 mm², cross-section: 0.2 mm² - 6 mm²
