PTFIX 2X1,5 TQ

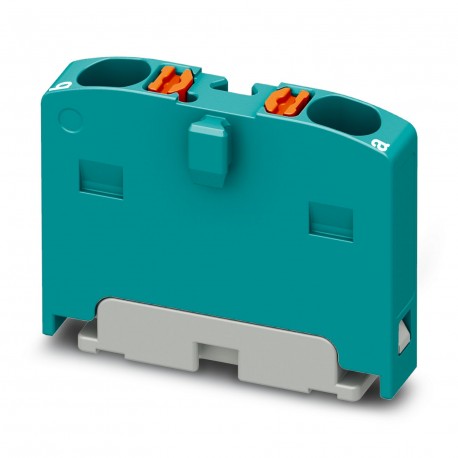

PTFIX 2X1,5 TQ 1082538 PHOENIX CONTACT Block for distribution, Terminal base, rated voltage: 450 V, rated cu..
$0.00USD
4527 in stock
Key Specifications
:Depending on the application case and mechanical load, other arrangements of the mounting accessory can also be chosen.
Note:When aligning several blocks, the foot elements should be placed in a way that maximum 2 blocks are free-hanging in between. Flange elements should be placed after every 9 blocks and with engagement pins after every 12 blocks.
Color:pastel turquoise (RAL 6034)
Depth:17.7 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Depending on the application case and mechanical load, other arrangements of the mounting accessory can also be chosen. | |
| Note | When aligning several blocks, the foot elements should be placed in a way that maximum 2 blocks are free-hanging in between. Flange elements should be placed after every 9 blocks and with engagement pins after every 12 blocks. |
| Color | pastel turquoise (RAL 6034) |
| Depth | 17.7 mm |
| Width | 4.2 mm |
| Height | 21.6 mm |
| Result | Test passed |
| Spectrum | Service life test category 2, bogie-mounted |
| ASD level | 6.12 (m/s²)²/Hz |
| Frequency | f1= 5 Hz to f2= 250 Hz |
| Potentials | 1 |
| Pulse shape | Half-sine |
| Revolutions | 135 |
| Acceleration | 3.12g |
| Product type | Distributor terminal block |
| Mounting type | for snapping onto a DIN rail adapter |
| Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
| Number of rows | 1 |
| Rotation speed | 10 rpm |
| Shock duration | 18 ms |
| Nominal current | 17.5 A |
| Nominal voltage | 450 V |
| Open side panel | No |
| Test directions | X-, Y- and Z-axis |
| Article revision | 01 |
| Stripping length | 8 mm ... 10 mm |
| Time of exposure | 30 s |
| Cross section AWG | 26 ... 14 (converted acc. to IEC) |
| Temperature cycles | 192 |
| Degree of pollution | 3 |
| Insulating material | PA |
| Rated surge voltage | 6 kV |
| Test force setpoint | 1 N |
| Maximum load current | 21 A (with a 2.5 mm² conductor cross section) |
| Overvoltage category | III |
| Maximum total current | 21 A |
| Nominal cross section | 1.5 mm² |
| Number of connections | 2 |
| Test voltage setpoint | 7.3 kV |
| Test duration per axis | 5 h |
| DIN rail/fixing support | NS 35/NS 15 |
| Rated cross section AWG | 14 |
| Insulating material group | I |
| Internal cylindrical gage | A1 / B1 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Conductor cross section/weight | 0.14 mm² / 0.2 kg |
| Number of shocks per direction | 3 |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Number of connections per level | 2 |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Connection in acc. with standard | IEC 60998-2-2 |
| Permissible humidity (operation) | 20 % ... 90 % |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Conductor cross section, rigid [AWG] | 26 ... 14 (converted acc. to IEC) |
| Short-time withstand current 1.5 mm² | 0.18 kA |
| Short-time withstand current 2.5 mm² | 0.3 kA |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Conductor cross section, flexible [AWG] | 26 ... 16 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Static insulating material application in cold | -60 °C |
| Maximum power dissipation for nominal condition | 0.56 W |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 1.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 1.5 mm² |
Product Description
Distribution block, Base terminal, nominal voltage: 450 V, nominal current: 17.5 A, number of connections: 2, connection type: Push-in connection, cross-section: 0.14 mm² - 2.5 mm², mounting type: int
