PTF 0,3/ 4-BB-8-H

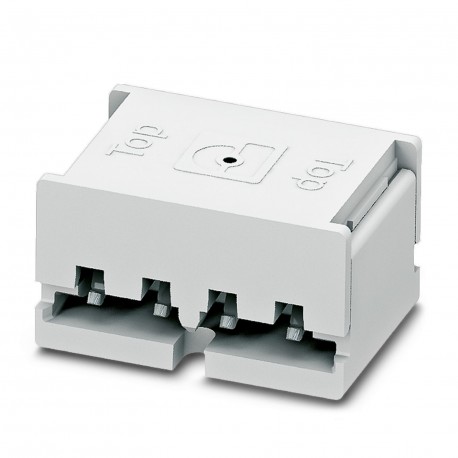

PTF 0,3/ 4-BB-8-H 1707559 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
3258 in stock
Key Specifications
GTIN:4046356934237
Orderkey:1707559
Packing unit:25 pc
Country of origin:PL (Poland)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356934237 |
| Orderkey | 1707559 |
| Packing unit | 25 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366930 |
| Minimum order quantity | 25 pc |
| Pitch (Key Commercial Data) | 1.9 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Range of articles (Dimensions) | PTF 0,3/..-BB-H |
| Insulating material (Dimensions) | PBT |
| Number of positions (Dimensions) | 4 |
| Maximum load current (Dimensions) | 10 A (Total current of all contacts) |
| Width [ w ] (Key Commercial Data) | 9.2 mm |
| Height [ h ] (Key Commercial Data) | 4.8 mm |
| Length [ l ] (Key Commercial Data) | 8 mm |
| Nominal cross section (Dimensions) | 0.34 mm² |
| Rated voltage (III/2) (Dimensions) | 25 V |
| Rated voltage (III/3) (Dimensions) | < 25 V |
| Weight per Piece (excluding packing) | 1.910 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | IIIa |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
Direct connector for printed circuit board, nominal section: 0.34 mm², color: white, nominal voltage (III/2): 25 V, contact surface: Tin, contact connection type: Female, number of potentials: 4, numb
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
